    EIP-2051

    Isolated 16-ch DI EtherNet/IP Module



    The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

    The EIP-2051 is a remote digital input module with 16 inputs. It is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2051 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.



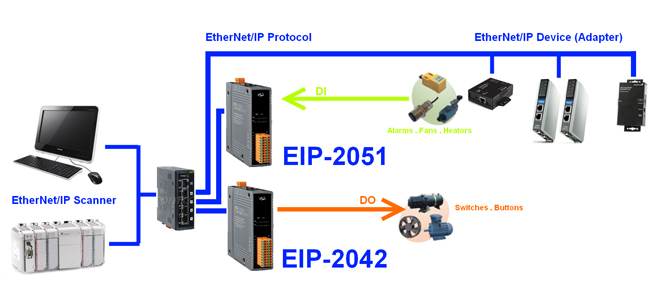

    Applications
    • Building Automation
    • Factory Automation
    • Machine Automation
    • Remote Maintenance
    • Remote diagnosis
    • Testing Equipment


    Features
    General Features:
    • Transfer protocol: EtherNet/IP
    • Powerful 32-bit MCU handles efficient network traffic
    • 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
    • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
    • Easy firmware update via Ethernet
    • Removable terminal block connector
    • LED display to indicate the inputs status
    • Built-in I/O
      • DI/Counter: 16 Channels
    • RoHS compliant


    Utility

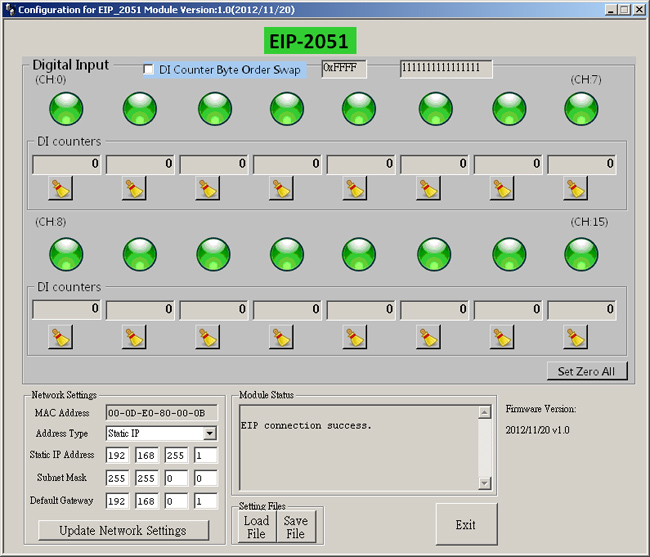

    ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.
    • Network parameters configuration
    • DI counters inspection
    • Easy test to receive the input status by EtherNet/IP
    • Setting files management



    Hardware Specifications
    Digital Input
    Channels 16
    Input Type Dry Contact: Source, Wet Contact: Sink / Source
    Dry Contact Level Off Voltage Level: Open
    On Voltage Level: Close to GND
    Wet Contact Level Off Voltage Level: +4V max.
    On Voltage Level: +10 V ~ +50 V
    Counters Channels 16
    Max. Counts 32-bit (4294967295)
    Max. Input Frequency 5KHz
    Photo-Isolation 3750 VDC
    Communication Interface
    Connector 10/100 Base-TX, 8-pin RJ-45 x 2
    Support daisy chain connection.
    Standard Supported IEEE 802.3 Ethernet/IP
    Power
    Input Voltage Range 10V ~ 30V
    Power Consumption 1.6W
    Mechanism
    Installation DIN-Rail
    Dimensions 110mm x 90mm x 33mm (H x W x D)
    Environment
    Operating Temperature -25℃ ~ +75℃
    Storage Temperature -30℃ ~ +80℃


    Ordering Information
    EIP-2051 CR
    		 Isolated 16-ch DI EtherNet/IP Module (RoHS)


    Optional Accessories
    MSM-6226 CR 24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media (RoHS)
    NS-205 CR Unmanaged 5-Port Industrial Ethernet Switch (RoHS)
    NS-205PSE CR Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS)
    NS-205PSE-24V CR Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch; 24 VDC Input
    NSM-205PSE-24V CR Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing; 24 VDC Input
