  • EIP-2019

    Isolated 8-ch Thermocouple Analog Input EtherNet/IP module

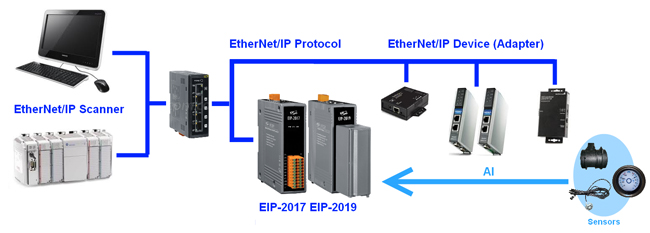

    The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

    The EIP-2019 is an 8-ch remote analog input module. It supports not only voltage and current(internal resistors selectable) input type but also thermocouple type with B,C,E,J,K,N,R,S,T. There is an automatically cold-junction compensation (CJC) for each channel. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2019 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.



    Applications
    • Building Automation
    • Factory Automation
    • Machine Automation
    • Remote Maintenance
    • Remote diagnosis
    • Testing Equipment


    Features
    General Features:
    • Transfer protocol: EtherNet/IP
    • Powerful 32-bit MCU handles efficient network traffic
    • 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
    • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
    • Easy firmware update via Ethernet
    • Removable terminal block connector
    • LED display to indicate the I/O status
    • 8-ch analog Inputs
    • Internal resistors (125Ω) selectable
    • Support cold-junction compensation(CJC)
    • RoHS compliant


    Utility
    ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.
    • Network parameters configuration
    • AI parameters configuration
    • CJC settings adjustment
    • Functions configuration such as Type Code selection
    • Easy test to transmit/receive the I/O status by EtherNet/IP
    • Setting files management



    Hardware Specifications
    Analog Input
    Channels 8-ch Thermocouple Analog Input
    Input Type Voltage:±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
    Thermocouple :B,C,E,J,K,N,R,S,T
    Current : ±20 mA (Jumper Selectable)
    Resolution 16 bits
    Sampling Rate 10 samples/ second (1 channel)
    Accuracy +/-0.1% (1 channel)
    Zero Drift +/-20uV/°C
    Span Drift +/-25ppm/°C
    Input Impedance Voltage Input: >400 kΩ, Current Input: 125 Ω
    Intra-Module Isolation, Field-to-Logic 3000 VDC
    Overvoltage protection 240 Vrms
    Individual Channel Configuration Yes
    Open Wire Detection Yes
    Communication Interface
    Connector 10/100 Base-TX, 8-pin RJ-45 x 2
    Support daisy chain connection.
    Standard Supported IEEE 802.3 Ethernet/IP
    Power
    Input Voltage Range 10V ~ 30V
    Power Consumption 3.8W
    Mechanism
    Installation DIN-Rail
    Dimensions 110mm x 90mm x 33mm (H x W x D)
    Environment
    Operating Temperature -25℃ ~ +75℃
    Storage Temperature -30℃ ~ +80℃


    Ordering Information
    EIP-2019/S CR
    Isolated 8-ch Thermocouple AI EtherNet/IP Module with CN-1824 Daughter Board (RoHS)


    Optional Accessories
    MSM-6226 CR 24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media (RoHS)
    NS-205 CR Unmanaged 5-Port Industrial Ethernet Switch (RoHS)
    NS-205PSE CR Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS)
    NS-205PSE-24V CR Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch; 24 VDC Input
    NSM-205PSE-24V CR Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing; 24 VDC Input
