EIP-2017

Isolated 8-ch DIFF / 16-ch SE Analog Input EtherNet/IP module

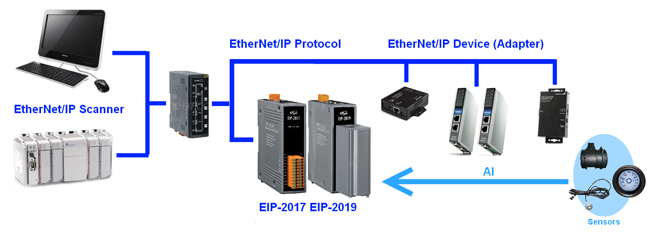

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

The EIP-2017 is an 8-ch Differential and 16-ch Single-Ended AI module. The module provides a jumper to switch Differential and Single-Ended mode. It supports voltage and current input type. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2017 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

Applications

Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote diagnosis
Testing Equipment

Features

General Features:

Transfer protocol: EtherNet/IP
Powerful 32-bit MCU handles efficient network traffic
10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
Easy firmware update via Ethernet
Removable terminal block connector
LED display to indicate the I/O status
Analog Input
- Differential: 8 Channels
- Single ended: 16 Channels
Internal resistors (125Ω) selectable in Differential mode
RoHS compliant

Utility

ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.

Network parameters configuration
AI parameters configuration
Functions configuration such as Type Code selection
Easy test to transmit/receive the I/O status by EtherNet/IP
Setting files management.

Hardware Specifications

Analog Input
Channels	8-ch differential or 16-ch single-ended ( Jump selectable)
Input Type	Voltage : ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V Current : 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable in DIFF mode. An external resistor is required in SE mode)
Resolution	16 bits
Sampling Rate	10 samples/ second
Accuracy	+/-0.1%
Zero Drift	+/-20uV/°C
Span Drift	+/-25ppm/°C
Input Impedance	Voltage Input: >400 kΩ, Current Input: 125 Ω
Intra-Module Isolation, Field-to-Logic	3000 VDC
Overvoltage protection	240 Vrms
Individual Channel Configuration	Yes
Communication Interface
Connector	10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection.
Standard Supported	IEEE 802.3 Ethernet/IP
Power
Input Voltage Range	10V ~ 30V
Power Consumption	3.8W
Mechanism
Installation	DIN-Rail
Dimensions	110mm x 90mm x 33mm (H x W x D)
Environment
Operating Temperature	-25℃ ~ +75℃
Storage Temperature	-30℃ ~ +80℃

Ordering Information

EIP-2017 CR

Isolated 8-ch DIFF or 16-ch SE AI EtherNet/IP Module (RoHS)

Optional Accessories

MSM-6226 CR	24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media (RoHS)
NS-205 CR	Unmanaged 5-Port Industrial Ethernet Switch (RoHS)
NS-205PSE CR	Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS)
NS-205PSE-24V CR	Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch; 24 VDC Input
NSM-205PSE-24V CR	Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing; 24 VDC Input
