  • CAN-2060C

    CANopen Slave Module of 4-channel Isolated Digital Input and 4-channel Relay Output



    CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

    CAN-2060C module follows the CiA-301 version 4.02 and CiA-401 version 2.1. You can access the digital I/O status and set the configuration by using standard CANopen protocol. CAN-2060C has passed the validation of the CiA CANopen conformance test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2060C has 4 isolated sink/source input channels and 4 Relay output channelsl, It can be used to various applications. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site.

    http://oldweb.icpdas.com/root/product/solutions/industrial_communication/fieldbus/fieldbus_selection_guide.html#2

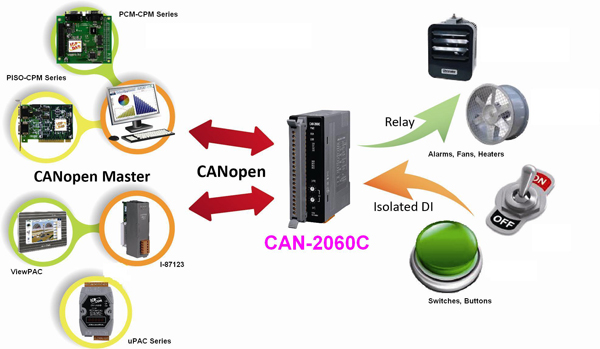

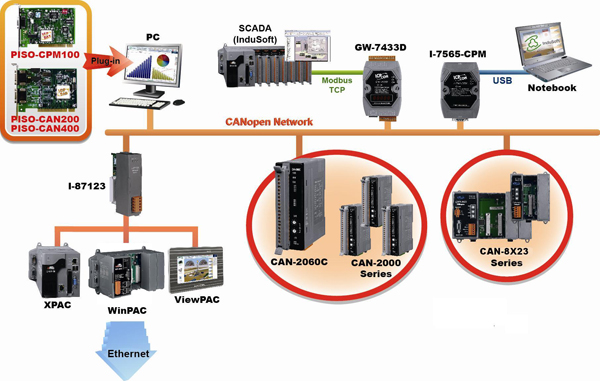

    Applications







    Hardware Specifications
    CANopen Interface
    Connector 5-pin screwed terminal block  (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
    Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M, selected by rotary switch
    Terminal Resistor DIP switch for the 120 Ω terminal resistor
    Protocol CANopen CiA 301 ver4.02, CiA 401 ver2.1
    Node ID 1~99 selected by rotary switch
    NMT Slave
    Error Control Node Guarding protocol / Heartbeat Producer
    SDOs 1 server, 0 client
    PDOs 10 RxPDO, 10 TxPDO (Supports dynamic PDO)
    PDO Modes Event-triggered, remotely-requested, synchronous (cyclic), synchronous (acyclic)
    Emergency Message Yes
    EDS file Yes
    Digital Input
    Channels 4 (Sink/Source)
    On Voltage Level 3.5 ~ 30 VDC
    Off Voltage Level +1 VDC Max
    Input Impedance 3kΩ, 0.3W
    Response Time 250 us
    Intra-module Isolation 3750 Vrms
    ESD Protection 4kV for each channel
    Relay Output
    Channels 4
    Type Form A (SPST-NO)
    Max. Load Current 5A,250VAC / 5A,30VDC ,each channel
    Operate Time: 10ms max
    Release Time 5ms max
    LED
    CANopen Status 3 LEDs to PWR, RUN and ERR
    Terminal Resister 1 LED to terminal resister indicator
    DI LED 4 LEDs to digital input indicator
    DO LED 4 LEDs to digital output indicator
    Power
    Power Supply Unregulated +10 ~ +30 VDC
    Power Consumption 1.7 W
    Mechanism
    Installation DIN-Rail
    Dimensions 33 mm x 99 mm x 78 mm ( W x L x H )
    Environment
    Operating Temp. -25 ~ 75 ℃
    Storage Temp. -30 ~ 80 ℃
    Humidity 10 ~ 90% RH, non-condensing


    Ordering Information
    CAN-2060C
    CANopen slave module of 4-channel DI and Relay Output
