  • CAN-2019C

    CANopen Slave Module of 10-channel Universal Analog Input



    CAN-2019C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the thermocouple input status and set the configuration by using standard CANopen protocol. CAN-2019C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. The CAN-2019C is a 10-channel universal analog input CANopen slave module with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site, please refer to the following web site.

    http://oldweb.icpdas.com/root/product/solutions/industrial_communication/fieldbus/fieldbus_selection_guide.html#2

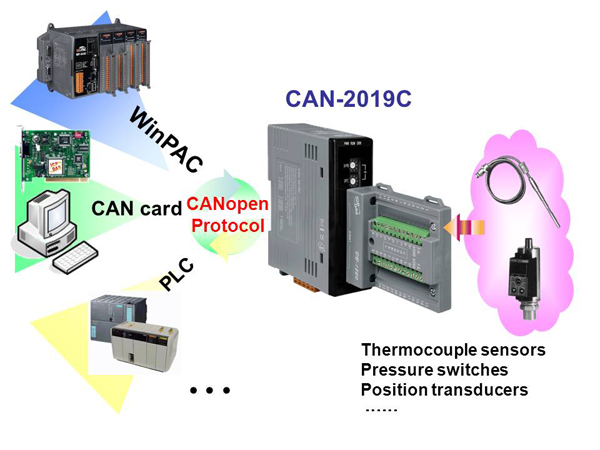

    Applications




    Hardware Specifications
    CANopen Interface
    Connector 5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
    Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M, selected by rotary switch
    Terminal Resistor DIP switch for the 120 Ω terminal resistor
    Protocol CANopen CiA 301 ver4.02, CiA 401 ver2.1
    Node ID 1~99 selected by rotary switch
    NMT Slave
    Error Control Node Guarding protocol / Heartbeat Producer
    SDOs 1 server, 0 client
    PDOs 10 RxPDO, 10 TxPDO (Supports dynamic PDO)
    PDO Modes Event-triggered, remotely-requested, synchronous (cyclic), synchronous (acyclic)
    Emergency Message Yes
    EDS file Yes
    Analog Input
    Channels 10 (Differential)
    Input Type +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V
    +/-20mA,(Requires Optional External 125 Ohm Resistor)
    Thermocouple (J, K, T, E, R, S, B, N, C)
    Resolution 16-bit
    Sampling Rate 10 Samples/Sec. (Total)
    Accuracy +/-0.1% FSR
    Zero Drift +/-10 uV/°C
    Span Drift +/-25 ppm/ °C
    Common Mode Rejection 86 dB Min.
    Normal Mode Rejection 100 dB
    Input Impedance >400 kΩ
    Individual channel configuration Yes
    Open Thermocouple Detection Yes
    Over voltage protection 240 Vrms
    ESD Protection +/-4kV, Contact for each terminal.
    Intra-module Isolation, Field to Logic 3000 VDC
    LED
    CANopen Status 3 LEDs to PWR, RUN and ERR
    Power
    Power Supply Unregulated +10 ~ +30 VDC
    Power Consumption 1.5 W
    Mechanism
    Installation DIN-Rail
    Dimensions 33 mm x 99 mm x 78 mm ( W x L x H )
    Environment
    Operating Temp. -25 ~ 75 ℃
    Storage Temp. -30 ~ 80 ℃
    Humidity 10 ~ 90% RH, non-condensing


    Thermocouple Type
    Type Code Temperature Range (°C)
    J -210 °C ~ +1200 °C
    K -270 °C ~ +1372 °C
    T -270 °C ~ +400 °C
    E -270 °C ~ +1000 °C
    R -50 °C ~ +1765 °C
    S -50 °C ~ +1765 °C
    B 0 °C ~ +1820 °C
    N -270 °C ~ +1300 °C
    C 0 °C ~ +2320 °C


    Ordering Information
    CAN-2019C/S
    CANopen Slave Module of 10-channel Universal Analog Input Include CAN-2019C module and a DB-1820 daughter board
    CAN-2019C/S2 CR
    CANopen Slave Module of 10-channel Universal Analog Input
    Include CAN-2019C module, a DB-1822 daughter board and a 1.8m Cable

    CAN-2019C/S CR = CAN-2019C Connects DB-1820 Directly CAN-2019C/S2 CR = CAN-2019C Connects DB-1822 Directly
