  • CAN-2015C

    CANopen Slave Module of 8-channel RTD Inputs



    CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network system, such as industrial machine control , vehicle control system, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

    The CAN-2015C is a CANopen slave which follows the CiA 301 version 4.02 and CiA 401 version 2.1. This module provides 8 RTD input channels, and users can obtain the RTD input data or configure the CAN-2015C via the standard CANopen protocol. In order to be fully compatible with other CANopen devices, the CAN-2015C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, it is very easy to integrate the CAN-2015C with the standard CANopen master by applying the EDS file. Combining with the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

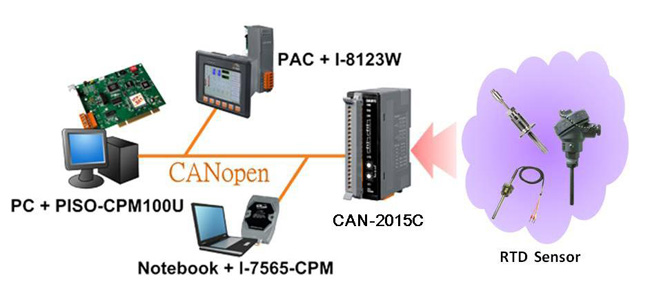

    Applications




    Hardware Specifications
    CANopen Interface
    Connector 5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
    Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M, selected by rotary switch
    Terminal Resistor DIP switch for the 120 Ω terminal resistor
    Protocol CANopen CiA 301 ver4.02, CiA 401 ver2.1
    Node ID 1~99 selected by rotary switch
    NMT Slave
    Error Control Node Guarding protocol / Heartbeat Producer
    SDOs 1 server, 0 client
    PDOs 10 RxPDO, 10 TxPDO (Supports dynamic PDO)
    PDO Modes Event-triggered, remotely-requested, synchronous (cyclic), synchronous (acyclic)
    Emergency Message Yes
    EDS file Yes
    Analog Input
    Channels 8 channels for 2-wire or 3-wire RTD
    Input Type Pt100, Pt1000, Ni120, Cu100, Cu1000, JPt100
    Resolution 16-bit
    Sampling Rate 10 Samples/Sec. (Total)
    Accuracy +/-0.05% FSR
    Zero Drift +/- 0.5 μV/ °C
    Span Drift +/- 20 ppm/ °C
    Common Mode Rejection 150 dB
    Normal Mode Rejection 100 dB
    Individual Channel Configuration Yes
    Open Thermocouple Detection Yes
    Over voltage Protection 120 VDC / 110 VAC
    Input Impedance 20 MΩ
    Isolation 3000 V DC-DC isolation, 3000 Vrms photo-coupler isolation
    Hardware
    ESD Protection Contact 4 kV class A
    LED
    LEDs PWR LED, RUN LED, ERR LED
    Power
    Power Supply Unregulated +10 ~ +30 VDC
    Power Consumption 1.5 W
    Mechanism
    Casing Plastic case, fire-retardant materials (UL94-V0 Level)
    Installation DIN-Rail
    Dimensions 33 mm x 99 mm x 78 mm ( W x L x H )
    Environment
    Operating Temp. -25 ~ 75 ℃
    Storage Temp. -30 ~ 80 ℃
    Humidity 10 ~ 90% RH, non-condensing


    Ordering Information
    CAN-2015C CANopen slave module of 8-channel RTD inputs
