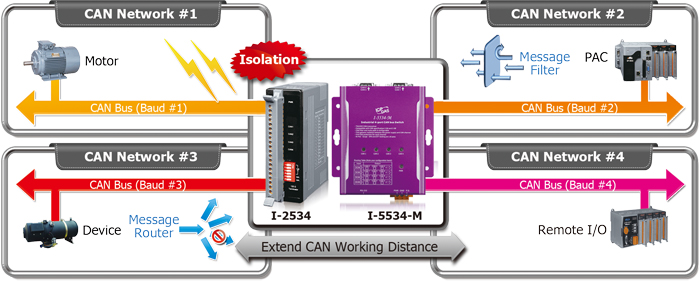

The I-2534 / I-5534-M is one kind of CAN bus switch. There are four independent CAN channels which offer a flexible design of the start or tree network topology. This new topology could resolve the complex CAN bus application, like industrial machinery, building automation, vehicle automation, and etc. Furthermore the I-2534 / I-5534-M integrates and exchanges data between different CAN network which has different baud rate. It helps users to extend the CAN network system. The I-2534 / I-5534-M could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.
|
|
|
|
|
|
| Applications |
|
|
|
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
|
 |
|
|
|
|
| Features |
|
|
|
- 4 CAN communication ports
- Compatible with CAN specification 2.0A and 2.0B
- Fully compatible with the ISO 11898-2 standard
- Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
- CAN bus filter is configurable
- 100 data frames buffer for each CAN channel
- Max data flow up to 2500 fps for all CAN channel
- Selectable baud rate by rotary switch
- Selectable 120Ω terminal resistor by DIP switch
- LED for CAN reception and transmission

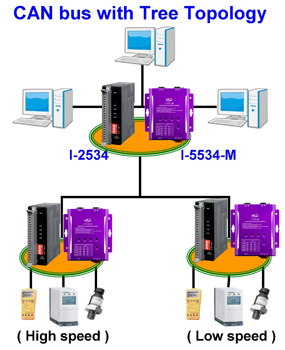

- Support CAN network with star or tree topology
- Extending the CAN bus distance to expand the CAN network size
- Integrating different CAN network with different baud rate
- I-2534 is casing with Flame-Resistant plastic case
- I-5534-M is casing with Aluminum metallic case
- Utility tool for CAN filter, route path, user-defined baud rate and CAN-ID mapping (v1.10 firmware) configuration
- Max. CAN-ID mapping data up to 32 for each CAN channel. (v1.10 firmware)
|
|
|
|

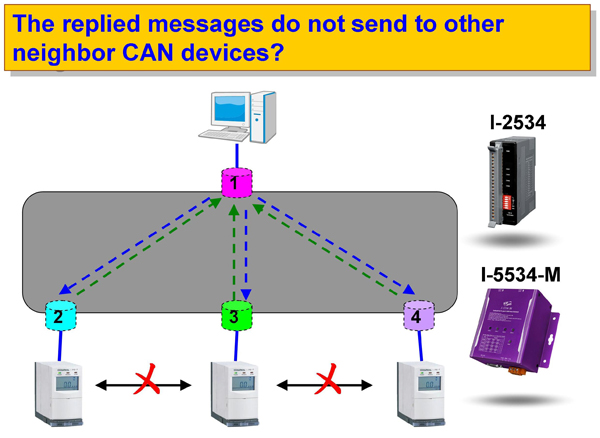

| Network Deployment |
|
|
|

|
|
| |
|
|
|
| Hardware Specifications |
|
|
|
| Model Name |
I-2534 |
I-5534-M |
Hardware |
Controller |
High Performance Microcontroller |
RTC (Real Time Clock) |
No |
Watchdog |
Watchdog IC |
CAN Interface |
Transceiver |
NXP TJA1042 |
Channel number |
4 |
| CAN Connector |
3-pin screwed terminal block with CAN_H, CAN_L, CAN_GND |
9-pin male D-Sub with CAN_GND, CAN_SHLD, CAN_H, CAN_L |
CAN Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
Baud Rate (bps) |
5k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined |
Baud Rate Selection |
Selectable by rotary switch |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
Terminal Resistor |
Selectable 120Ω terminal resistor by DIP switch |
Selectable 120Ω terminal resistor by internal jump |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1000 m at 50 kbps ) |
CAN Filter |
Configurable by user |
Propagation Delay |
240 us ~ 1360 us *note1 |
UART Interface |
RS-232 |
1 port (for configuration) |
RS-232 Connector |
3-pin screwed terminal block (TxD, RxD, GND ) |
9-pin screwed terminal block (TxD, RxD, GND ) |
LED |
Round LED |
CAN status LED x 4 , Power LED x 1 |
Power |
Input range |
Unregulated +10 ~ +30 VDC |
Power Consumption |
3W |
1.5W |
Mechanism |
Installation |
DIN-Rail |
Wall-Mounting |
Casing |
Flame-Resistant plastic case |
Aluminum metallic case |
Dimensions |
32.3 mm x 99 mm x 77.5 mm (W x L x H) |
116.5 x 127 x 61.3 mm (W x L x H) |
Environment |
Operating Temp. |
-25 ~ 75 ℃ |
Storage Temp. |
-30 ~ 80 ℃ |
Humidity |
10 ~ 90% RH, non-condensing |
| ESD protection |
4 kV Contact for each channel |
| EFT protection |
500V for signal, 1000V for power |
| EMI certification |
30M ~ 1G pass |
| Hi-pot protection |
1kV pass |
| Surge protection |
500V pass |
1kV pass |
note1:
The propagation delay depends on the CAN Bus baud rate and the CAN message format.
The minimum delay is [ 11-bit ID and 8-byte data @ 1M bps ]
The maximum delay is [ 29-bit ID and 8-byte data @ 5k bps ] |
|
|
|
| Ordering Information |
|
|
|
| I-2534 CR |
Industrial 4-port CAN bus Switch |
| I-5534-M |
Industrial 4-port CAN bus Switch with Metal casing |
|
|
|
|
| Optional Accessories |
|
|
|
| CA-0910-C |
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
| SG-770 |
7/14 channel Surge Protector |
| 4PCD-002 |
EMI Ferrite Split/Snap-On Core |
| M12A-5P-IP68 |
Field-Installation A-coded 5-pin Female
|
|
|
| |
|
