The PLC, HMI and SCADA are popular in the various industrial control applications, but most of them don't provide CAN interfaces. Users always experienced difficulties due to connecting the sensors or actuators which only have a CAN interface. The basic function of I-7530A-MR is compatible with I-7530A, and the "MR" stands for "Modbus RTU". So, the I-7530A-MR supports Modbus RTU protocol in its RS-232/422/485 port. Modbus RTU is popular and widely supported by most of the PLCs, HMIs, and SCADAs. I-7530A-MR is helpful to use standard Modbus RTU protocol to access CAN networks without difficulties. And with the special designed firmware, beside normal received CAN message buffer, it offers special memory space to save up to 100 kinds of CAN messages which are urgent and must be processed immediately. The feature helps the PLC, HMI and SCADA to use Modbus RTU function code 3,4,16 to access CAN devices in a easy way.
In Modbus RTU mode, it allows a Modbus RTU master to communicate with CAN devices on a CAN network. The following figure shows the application architecture of this mode.
|
|
 |
|
In pair-connection mode, this module provides the pair connection and transparent communication between the RS-232/485/422 devices via CAN bus. The application architecture may be as follows.
|
|
In the Modbus Master mode, it allows many Modbus RTU slaves to communicate with CAN devices on a CAN network. The following figure shows the application architecture in this mode. The Modbus master function can be supported in firmware version v1.11 or later.
|
|
|
|
| Applications |
|
|
|
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
|
 |
|
|
|
|
| Features |
|
|
|
-
-
Fully compatible with ISO 11898-2 standard
-
Programmable CAN bus baud rate from 10 kbps to 1 Mbps or user-defined baud rate
-
Support CAN bus acceptance filter configuration
-
Support firmware update via RS-232
-
Provide utility tool for module setting and CAN bus communication testing
-
Built-in jumper to select 120Ω terminal resistor
-
CAN buffer: 128 data frames ; UART buffer: 256 bytes
-
Power, data flow and error indicator for CAN and UART status
-
-
Convert CAN message to specific ASCII command string (Normal mode)
-
Convert specific ASCII command string to CAN message (Normal mode)
-
Provide the transparent communication between the RS-232/485/422 devices via CAN bus (Pair-connection mode)
-
In Modbus Slave mode, I-7530A-MR supports function code 0x03, 0x04, 0x06 (firmware version v1.11 or later), and 0x10 of Modbus RTU command for reading or writing CAN message (Modbus Slave mode). (New)
-
Support Modbus Master function (firmware version v1.11 or later). (New)
|
|
|
|
| Utility |
|
|
|
-
CAN bus Baud Rate configuration
-
CAN acceptance filter configuration
-
CAN 2.0A or 2.0B specific selection
-
RS-232/485/422 baud rate and data format configuration
-
RS-232/485/422 communication with checksum function selection
-
Communication mode setting
-
Easily transmit/receive CAN messages
|
 |
|
|
|
|
| Software |
|
|
|
| Item |
Description |
CAN bus Power Meter |

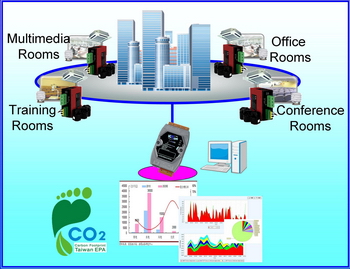

This is the software solution for the CAN bus power meter(PM-213x-CAN). It is convenient to collect the distributed power information via CAN bus. [more...] |
CAN OPC Server |
This is the OPC server for all the SCADA like LabVIEW, iFix, DASYLab and etc. By using the OPC server, the users be able to control any CAN devices via the famous SCADA. [more...] |
VxCAN Driver |
The VxCAN driver is the virtual CAN driver for all CAN converters and CAN master products. Even using different products, the users could use the same APIs to develop any CAN applications. [more...] |
VxCAN Utility |
The VxCAN Utility, a diagnostic and test software tool, is designed to unleash the power of all CAN products of ICP DAS. It is based on the Virtual CAN technique which creates the virtual CAN ports to match the physical CAN interfaces of the installed products. [more...] |
InduSoft Driver |
The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...] |
CANcheck |
This is the software for diagnosing and testing the user's CAN devices. The graphical interface is ready-made and easy to operate. [more...] |
CAN Test Tool |
The CAN test tool can help users to test the CAN communication of CAN series of ICP DAS by the simple steps. This tool is based on VxCAN driver and supports most of all CAN products of ICP DAS [more...] |
|
|
|
|
| Performance Test |
|
|
|
RS-232/422 full-duplex communication mode |
CAN setting |
RS-232/422 setting |
RS-232/422 command length |
The max frames/sec |
2.0B, 1Mbps |
115200,n,8,1 |
27 Bytes |
370 |
2.0B, 1Mbps |
230400,n,8,1 |
27 Bytes |
666 |
2.0B, 1Mbps |
460800,n,8,1 |
27 Bytes |
1250 |
|
|
|
|
| Hardware Specifications |
|
|
|
Hardware |
EEPROM |
16 KB (for system information), 10,000,000 erase/write cycles |
CAN Interface |
Transceiver |
NXP 82C250 |
Connector |
9-pin male D-Sub (CAN_L, CAN_H, N/A for others) |
Channels |
1 |
Baud Rate (bps) |
10 k, 20 k, 50 k, 100 k, 125 k, 250 k, 500 k, 800 k and 1 M (allow user-defined baud rate) |
Protection |
3000VDC power protection and 3750Vrms photo-couple isolation on CAN side |
Terminal Resistor |
Selectable 120Ω terminal resistor by jumper |
Support Protocol |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
Pin Assignment |
C.I.A. DS-102 (CAN_H=7, CAN_L=2) |
UART Interface |
COM |
RS-232/RS-485/RS-422 (can’t be used simultaneously) |
Connector |
14-pin terminal connector
RS-232 : TxD, RxD, GND
RS-422 : TxD+, TxD-, RxD+, RxD-
RS-485 : DATA+, DATA- |
Baud Rate (bps) |
300,600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 |
Protection |
3000VDC power protection and 2500Vrms photo-couple isolation on UART side |
LED |
Round LED |
PWR/CAN/UART |
Power |
Power supply |
+10 ~ +30 VDC |
Power Consumption |
1.5 W |
Dip Switch |
Init (Firmware Update, Module Configuration)/Normal (Firmware Operation) |
Mechanism |
Installation |
DIN-Rail |
Dimensions |
72mm x 118mm x 35mm (W x L x H) |
Environment |
Operating Temperature |
-25 ~ 75 ℃ |
Storage Temperature |
-30 ~ 80 ℃ |
Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
Modbus RTU to CAN converter (RoHS) |
|
|
|
|
| Optional Accessories |
|
|
|
| CNT-CAN |
CAN bus Connector |
| CA-0910-C |
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
| SG-770 |
7/14 channel Surge Protector |
| 4PCD-002 |
EMI Ferrite Split/Snap-On Core |
| M12A-5P-IP68 |
Field-Installation A-coded 5-pin Female |
|
|
| |
|
