ICP DAS Releases New Product : XP-8xx7-CE6 Series of ISaGRAF XPAC |
|
|
|
|
|
 |
|
|
|
|
|

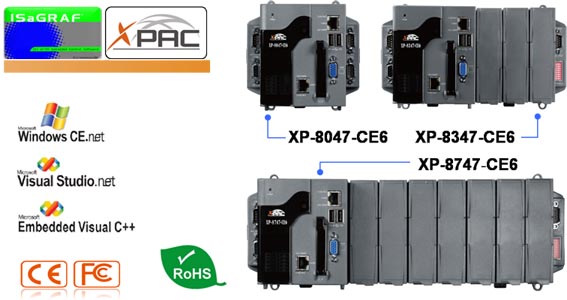

XP-8xx7-CE6 series is the new generation ISaGRAF PAC of ICP DAS. It is equipped with an AMD LX 800 CPU (500 MHz) running a Windows Embedded CE 6.0 operating system, various connectivity (as the table below) and 0/3/7 slots for high performance parallel I/O modules (high profile I-8K series) and hot-swap serial-type I/O modules (high profile I-87K I/O modules).
The Professional OS version of ISaGRAF XPAC, XP-8xx7-CE6-PRO, provides built-in Internet Explorer Software to monitor and/or control the local/remote I/O modules, no extra PC needed. |
|
|
|
|
|
- Major Advantage (Compared with the WP-8xx7 and VP-2xW7) :
- The USB mouse operations and Ethernet communication of the XP-8xx7-CE6 are more effective than the WP-8xx7 and VP-2xW7. (Consume less CPU loading)
- The memory size (Flash and SDRAM) of the XP-8xx7-CE6 is much more than the WP-8xx7 and VP-2xW7.
- The Professional OS version XP-8xx7-CE6-PRO can run its own Internet Explorer to monitor/control the local/remote I/O modules. (The Standard version XP-8xx7-CE6 requires running Internet Explorer in PC to monitor and/or control the local/remote I/O modules.)
|
|
|
|
|
|
| Model |
OS |
Pre-Installed Software |
CPU |
Flash |
SDRAM |
VGA (Resolution) |
Ethernet |
RS-232/
RS-485 |
USB 2.0 |
| XP-8xx7-CE6 |
WinCE 6.0 |
ISaGRAF |
LX 800
500 MHz |
4 GB |
512 MB |
1024 x 768
(or above) |
2 |
4 or 5 |
2 |
| XP-8xx7-CE6-PRO |
WinCE 6.0 Professional |
|
|
|
|
|
|
- Hot Features and Applications : (Pictures and descriptions)
- Support Modbus TCP/IP Master Protocol
- Support Modbus RTU/ASCII Master Protocol
- Support Modbus RTU/TCP Slave Protocol
- Support Data Log
- Stress Monitoring Application of Constructions
- Redundant Communication System : Central Control PAC to Local PACs
- Redundant Systems : Ethernet I/O redundant / Hot-swap RS-485 I/O redundant
- ZigBee Wireless Solution
- GPS Wireless Applications
- SMS : Short Message Service
- Send Email with/without One Attached File
- Data Acquisition and Auto-Report System
- Integrate with CAN/CANopen Devices and Sensors
- Fast FRnet Remote I/O Application
- Motion Control…
|
|
|
|
|
|
- Detail product descriptions and Specifications for XP-8xx7-CE6 Series :
|
|
|
|
|
|
Please refer to the following links for more ICP DAS ISaGRAF Products information :
ISaGRAF PAC Datasheet : http://www.icpdas.com/products/PAC/i-8000/data sheet/data sheet.htm
ISaGRAF PAC Web : http://www.icpdas.com/products/PAC/i-8000/isagraf.htm
ISaGRAF PAC Manual : http://www.icpdas.com/products/PAC/i-8000/getting_started_manual.htm
ISaGRAF PAC FAQ : http://www.icpdas.com/faq/isagraf.htm
I-8K & I-87K high profile I/O modules : http://www.icpdas.com/products/PAC/i-8000/8000_IO_modules.htm |
|
|
|
|
|
|
 |
