  XP-8047-CE6, XP-8347-CE6,
XP-8747-CE6
    ISaGRAF XPAC (Windows CE 6.0 inside)





Running HMI and Control Logic in the Same PAC
New!!
Trend and Gauge meter
Alarm Lists






XP-8xx7-CE6 series (XP-8047-CE6/8347-CE6/8747-CE6) is the new generation ISaGRAF PAC of ICP DAS. It is equipped with an AMD LX 800 CPU (500 MHz) running a Windows Embedded CE 6.0 operating system, various connectivity including VGA resolution: max. 1600 x 1200, USB2.0: 2, Ethernet: 10/100 Mbps x 2, RS-232/RS-485: 4 or 5, and 3/7 slots for high performance parallel-type I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K series), etc.

   Major advantage compared with the WP-8xx7 and VP-2xW7 :
    •
The USB-mouse operations and Ethernet communication of the XP-8xx7-CE6 are more effective (consume
       less CPU loading) than the WP-8xx7 and VP-2xW7.
    • The memory size (Flash and SDRAM) of the XP-8xx7-CE6 is much more than the WP-8xx7 and VP-2xW7.

   The XPAC Series XP-8xx7-CE6 supports ISaGRAF Ver. 3 Workbench:
    • IEC 61131-3 Standard Open PLC Programming Languages (LD, FBD, SFC, ST, IL, FC) + Flow Chart (FC)
    • Auto-Scan I/O
    • On-Line Debugging/Control/Monitoring, Off-Line Simulation
    • Simple Graphic HMI





Windows Compact Edition 6.0
.NET Compact Framework 3.5
ISaGRAF Ver.3 SoftLogic Inside
Support IEC 61131-3 Standard
Support Web HMI function
Support connect to Microsoft Server
Accepts max. 2 MB ISaGRAF code size






AMD LX 800 CPU (32-bit and 500 MHz)
More Effective USB & Ethernet than WP-8xx7
512 MB DDR SDRAM, 4 GB Built-In Flash
Battery Backup SRAM: 512 KB
System Rescue CF Card (Disaster Recovery System)
0/3/7 I/O Expansion Slots (support High Profile I/O Modules)
Dual Ethernet Ports (10/100M)
5 Serial Ports (RS-232/RS-485)
Redundant Power Inputs




Top






Top


Spec


Models XP-8047-CE6 XP-8347-CE6 XP-8747-CE6
System Software
OS Windows CE 6.0 R3 Core
.Net Compact Framework 3.5
Embedded Service FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
SDK Provided Dll for Visual Studio .Net 2005/2008
Multilanguage Support English, German, French, Spanish, Russian, Italian, Czech, Japanese, Korean, Simplified Chinese, Traditional Chinese
Development Software
ISaGRAF Software ISaGRAF Ver.3 IEC 61131-3 standard
Languages LD, ST, FBD, SFC, IL & FC
Support Soft-GRAF HMI : XP-8xx7-CE6, XP-8xx7-Atom-CE6, WP-8xx7/5xx7 and VP-2xW7/4xx7 PAC
Max. Code Size 2 MB
Scan Time 3 ~ 15 ms for normal program
15 ~ 50 ms (or more) for complex or large program
Non-ISaGRAF Options: VS.NET 2005/2008 (VB.NET, C#.NET)
Web Service
Web HMI PC running Internet Explorer can monitor/control PAC via Internet/modem
Security Web HMI supports three levels username and password protection. (high/middle/low)
CPU Module
CPU LX800, 500 MHz
System Memory 512 MB DDR SDRAM
Dual Battery Backup SRAM 512 KB; data valid up to 5 years (for retain variables)
Flash 4 GB as IDE Master
EEPROM 16 KB
CF Card Yes, support up to 32 GB
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number Yes, for Software Copy Protection
Dual Watchdog Timers Yes
Rotary Switch Yes (0 ~ 9)
DIP Switch - Yes (8 bits)
VGA & Communication Ports
VGA Yes, (resolution: 1024 x 768, 800 x 600, 640 x480)
Ethernet RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 2
COM 1 RS-232 (RxD, TxD, GND);
non-isolated
Internal communication with the high profile I-87K series modules in slots
COM 2 RS-232 (RxD, TxD and GND); non-isolated
COM 3 RS-485 (Data+, Data-) with internal self-tuner ASIC; 3000 VDC isolated
COM 4 RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485);
non-isolated
COM 5 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number 0 3 7
Note: For High Profile I-8K and I-87K Modules Only
Mechanical
Dimensions (W x L x H) 137 x 132 x 125 mm 231 x 132 x 125 mm 355 x 132 x 125 mm
Installation DIN-Rail or Wall Mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Ambient Relative Humidity 10 ~ 90% RH (non-condensing)
Power
Input Range +10 ~ +30 VDc
Isolation 1 kV
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity 15 W 35 W 35 W
Consumption 14.4 W 14.4 W 16.8 W


Protocols  (some protocols need optional devices)
Net ID 1 ~ 255, user-assigned by software
Modbus TCP/IP Master Link to max. 100 devices that support Standard Modbus TCP/IP Slave protocol (FAQ-113)
Modbus RTU/ASCII Master XP-8047-CE6 : Max. 33 Ports (COM1 ~ 33) (*);
Other ISaGRAF XPAC models : Max. 32 Ports (COM2 ~ 33)
(*)
(To connect to other Modbus Slave devices).
Modbus RTU Slave XP-8047-CE6 : Max. 9 Ports (COM1 ~ 33) (*);
Other ISaGRAF XPAC models : Max. 8 Ports (COM2 ~ 33) (*)
(For connecting ISaGRAF, PC/HMI/OPC Server & HMI panels).
Modbus TCP/IP Slave 2 Ethernet Ports all support Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI.
2 Ports support up to 64 connections.
Note: If PAC uses 1 connection to connect each PC/HMI, it can connect up to 64 PC/HMI; If PAC uses 2 connections to connect each PC/HMI, it can connect up to 32 PC/HMI; When one Ethernet port is broken, the other one can still connect to PC/HMI.
Web HMI Protocol Ethernet Ports for connecting PC running Internet Explorer.
User-Defined Protocol Write own protocol applied at COM2 ~ 33 (XP-8047-CE6 plus COM1) by Serial communication function blocks. (*)
I-7000 & I-87K RS-485 Remote I/O One of COM3 ~ 4 supports I-7000 I/O modules, I-87K base + I-87K Serial I/O boards or RU-87Pn + I-87K High Profile I/O boards as remote I/O.
Max. 255 modules of I-7000/87K Remote I/O for one PAC.
M-7000 Series Modbus I/O Max. 32 RS-485 ports (XP-8047-CE6: max. 33). Each port can connect up to 32 M-7000 Modules. (*)
Modbus TCP/IP I/O LAN2 supports ICP DAS Ethernet I/O : I-8KE4-MTCP and I-8KE8-MTCP. If LAN2 is broken, it will switch to LAN1 automatically to continuously work. (This need LAN1 & LAN2's IP are set in the same IP domain)  (FAQ-042)
FRnet I/O Support max 7 pcs. I-8172W boards in slot 1 ~ 7 to connect to FRnet I/O modules, like FR-2053, FR-2057 FR-32R, FR-32P. Each I-8172W board can link max. 256 DI plus 256 DO ch. (FAQ-82 and FAQ-154)
Send Email Supports functions to send Email with one attached file via Ethernet port.
Ebus To exchange data between ICP DAS's ISaGRAF Ethernet PACs via Ethernet port. (LAN2 Port only)
SMS: Short Message Service COM4 or COM5 can link to a GSM Modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user's cellular phone.
Optional GSM Modem: GTM-201-RS232 (850/900/1800/1900 GSM/GPRS External Modem) or other GSM/GPRS Modem.
MMICON/LCD COM4 or COM5 supports ICP DAS's MMICON.
UDP Server & UDP Client :
Exchange Message &
Auto-Report
LAN1 or LAN2 support UDP Server and UDP Client protocol to send/receive message to / from PC/HMI or other devices.
For example, to automatically report data to InduSoft's RXTX driver.
TCP Client :
Exchange Message &
Auto-Report
LAN1 or LAN2 support TCP Client protocol to send / receive message to / from PC/HMI or other devices which support TCP server protocol.
GPRS/SMS Support the I-8212W (2G/3G) card to receive/send a short message or to dial up to link the Internet by GPRS connection to send an email or communicate with remote stations by using "Ftp Client" (FAQ-151)  and "TCP Client" / "UDP Server" / "UDP Client" (FAQ-143).
SQL Client Support SQL Client function to write data to (or read data from) Microsoft SQL Server (2000 SP3, 2005, 2008).
Hot-Swap and Redundant System This redundant system has setup two “Active IP” address point to the active LAN1 and LAN2 ports always. One or more PC/HMI/SCADA can communicate with this redundant system via one of the two given active IP. So the PC/HMI/SCADA can access to the system easily without any notice about which PAC is currently active.
Moreover, the new redundant system can integrate with the RU-87P4/87P8 Expansion Unit plus the I-87K high-profile I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model number to hot-swap the damaged one without stopping this redundant system. (FAQ-138 and FAQ-125)
CAN/CANopen COM2, COM4 ~ 33 (XP-8047-CE6 plus COM1) (*) to connect one I-7530 (converter: RS-232 to CAN) to support CAN/CANopen devices and sensors. One PAC supports max.32 RS-232 ports to connect max.32 I-7530. (FAQ-086)
CANopen Master Support the I-8123W CANopen Master card to connect other CANopen slave devices. (FAQ-145)
HART Solutions Support I-87H17W modules in slot 1 to 7 to communicate with other HART devices.
FTP Client  Support FTP client to upload files in the PAC to a remote FTP server on PC. (FAQ-151)
Soft-GRAF’s g_Alarm & g_Logger1 HMI objects support FTP client, too.  (FAQ-146)
Soft-GRAF HMI Support the Soft-GRAF HMI . User can use the Soft-GRAF Studio on the PC to design the HMI screen and then download it to the PAC to display the HMI on the PAC.  (FAQ-146)
Optional I/O Functions  (Refer to ISaGRAF PAC I/O Selection Guide for I/O Module list)
PWM Output High Speed PWM Module I-7088, I-8088W, I-87088W: 8-ch PWM outputs, software support 1 Hz ~ 100 kHz
(non-continuous), duty: 0.1 ~ 99.9%
DO Module as PWM 8-ch max. 250 Hz max. For Off=2 & On=2 ms. Output square wave: Off: 2 ~ 32766 ms,
On: 2 ~ 32766 ms.
Optional DO Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W. (Relay Output boards cannot generate fast square wave)
Counter, Encoder, Frequency Parallel DI Counter 8 ch. max. for 1 controller. Counter val: 32 bit. 250 Hz max. Min. ON & OFF width must >2 ms.
Optional DI boards: I-8040W, 8040PW, 8042W, 8046W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W.
Serial DI Counter Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16 bit)
Optional serial I-87K DI boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W.
Remote DI Counter All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535
High Speed Counter I-87082W: 100 kHz max. 32 bit;
I-8084W: 250 kHz max. 32 bit
Encoder I-8093W: 3-axis Encoder Module, max. 1M Hz for quadrant input mode, max. 4 MHz for
              pulse/direction and cw/ccw input mode. (FAQ-112)
I-8084W: 250 kHz max., 4-ch encoder, pulse/direction or up/down or A/B phase (Quad. mode).
              Not support Encoder Z-index. (FAQ-100)
Frequency I-87082W: 2-ch, 1 Hz ~ 100 kHz;
I-87088W: 8-ch, 0.1 Hz ~ 500 kHz;
I-8084W: 8-ch, 1 Hz ~ 250 kHz;

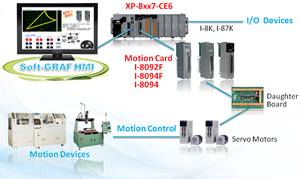

Motion Motion Control Integrate with one or several I-8092F (2-axis) or I-8094F/I-8094 (4-axis).
(Do not support XP-8047-CE6)
* Note: COM6 ~ COM33 are resided at the expansion boards if they are plugged on slot 1 ~ 7 of XP-8xx7-CE6.
           XP-8047-CE6’s COM1 is RS-232; other ISaGRAF XPAC's COM1 is for internal communication with I-87K modules in slots only.
* ISaGRAF FAQ: http://www.icpdas.com/faq/isagraf.htm
* Recommend to use NS-205/NS-208 or RS405/RS408 Industrial Ethernet Switch.



Top




XP-8047-CE6 CR 0 slots Ethernet WinCE 6.0 Based ISaGRAF PAC (RoHS) (OS: Multi-language version)
XP-8347-CE6 CR 3 slots Ethernet WinCE 6.0 Based ISaGRAF PAC (RoHS) (OS: Multi-language version)
XP-8747-CE6 CR 7 slots Ethernet WinCE 6.0 Based ISaGRAF PAC (RoHS) (OS: Multi-language version)
XPCE6-GUP-17000 Upgrade the XP-8xx1-CE6 to become XP-8xx7-CE6
(or Upgrade the XP-8xx9-CE6 to become XP-8xx6-CE6)
TPM-4100/TP-4100 10.4" (800 x 600) resistive touch panel monitor with RS-232 or USB interface
Accessories: VGA cable, RS-232 cable, USB cable, Mounting clamps and screws
