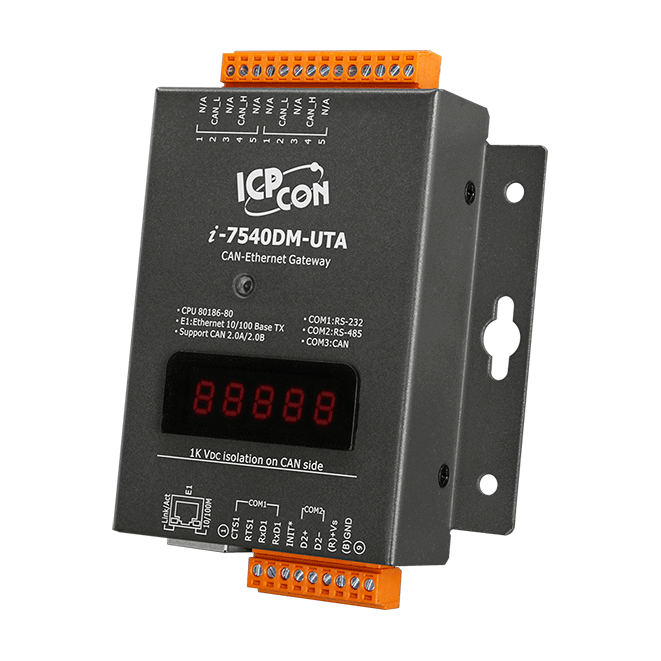

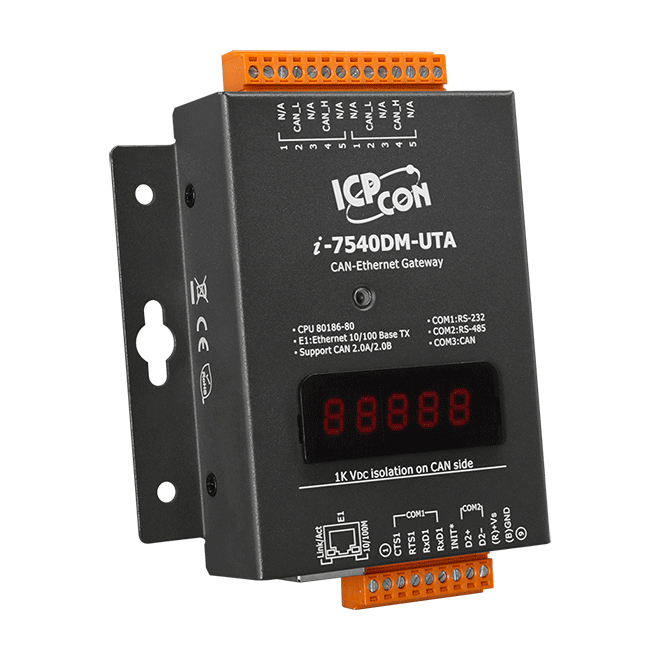

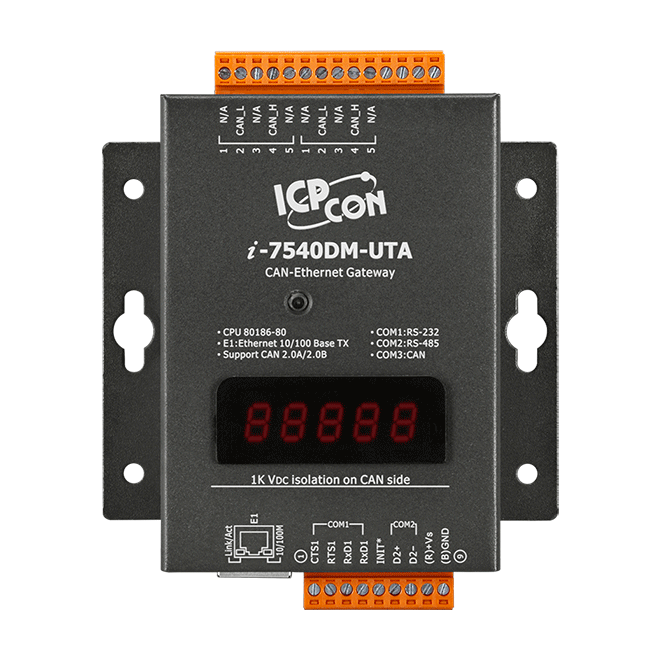

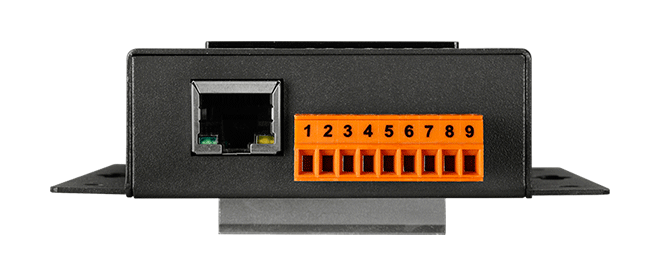

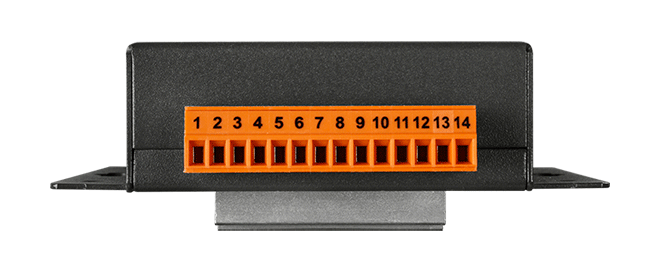

I-7540DM-UTA

CAN to Ethernet Gateway
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA
I-7540DM-UTA

Features

  • Compatible with the ISO 11898-2 standard
  • Compatible with CAN specification 2.0A and 2.0B
  • Support Web Configuration
  • Support Virtual COM technology
  • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
  • Message transmitted by using TCP/IP protocol and maximum 25 Ethernet client connections
  • Jumper selectable for 120Ω terminal resistor for CAN channel
  • Wide Operating Temperature Range: -40 ~ +75°C
CE UKCA RoHS WEEE

Introduction

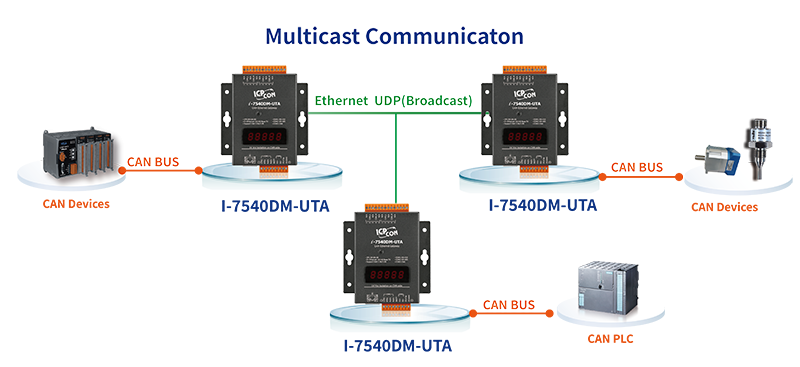

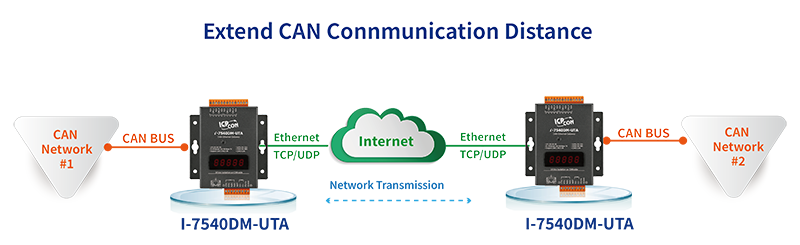

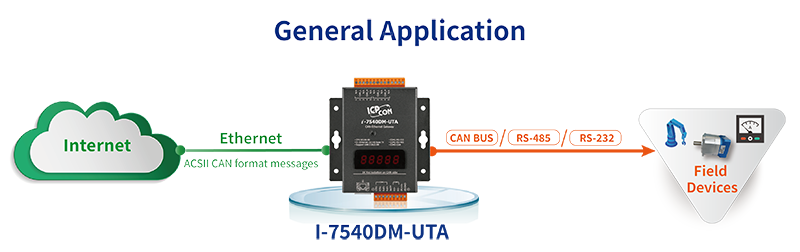

The I-7540D series are CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications.



Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7540DM-UTA     CR DESCRIPTIONCAN to Ethernet Gateway with one CAN bus, one RS-232, one RS-485 and one Ethernet (Metal Case) (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status 1 x Power
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
COM Ports
Ports 1 x RS-232
1 x RS-485 (self-turner ASIC inside)
Baud Rate 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.5 W
Mechanical
Casing Metal
Dimensions (mm) 102 x 125 x 28 (W x L x H)

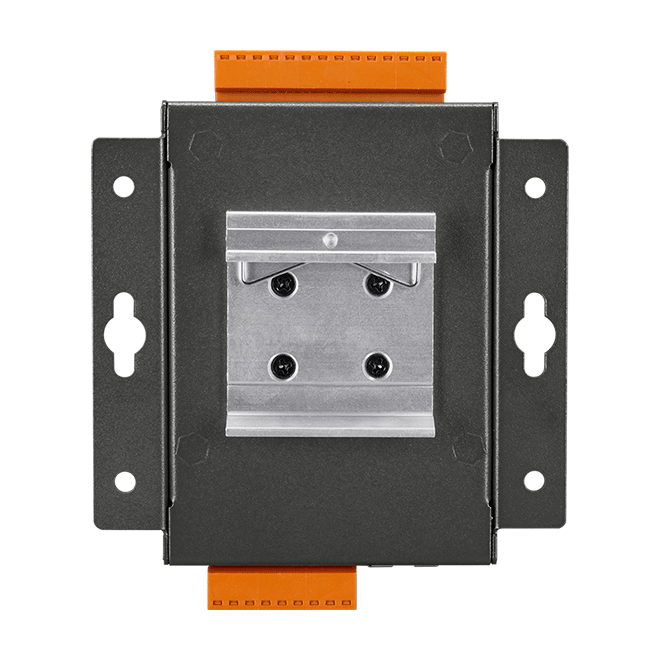

Installation Wall Mount
Environment
Operating Temperature -40 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
  • IP 、 Gateway 、 Mask configuration
  • CAN bus Baud rate configuration
  • CAN BTR0 and BTR1 configuration
  • CAN acceptance filter configuration
  • CAN 2.0A or 2.0B specific selection
  • Error code Responded selection
  • Easy test to transmit/receive CAN messages

Data Process

The VxComm technology can be used to simulate COM/CAN ports of the I-7540D to become a COM port of PC . With the help of VxComm driver, users can access the remote COM/CAN ports of the I-7540 just as them would access the PC's COM port. The block diagram of data processes in I-7540D is given as follows:

Performance Test

This test is the performance which transfer 8 bytes data frame(total 100000 frames) from CAN to Ethernet (one TCP client).
CAN Spec. Baud Rate 1000K Baud Rate 800K Baud Rate 500K Baud Rate 250K Baud Rate 125K Baud Rate 50K Baud Rate 20K Baud Rate 10K
CAN2.0A
FPS(Avg.)
2244 2237 2106 1483 989 410 174 88
CAN2.0B
PFS(Avg.)
2227 2243 2114 1422 807 357 146 73

This test is the performance which transfer 8 bytes data frame(total 100000 frames ) from Ethernet to CAN (one TCP client).
CAN Spec. Baud Rate 1000K Baud Rate 800K Baud Rate 500K Baud Rate 250K Baud Rate 125K Baud Rate 50K Baud Rate 20K Baud Rate 10K
CAN2.0A
FPS(Avg.)
2047 1899 1606 1154 741 380 155 86
CAN2.0B
PFS(Avg.)
1852 1732 1446 1021 643 322 122 72
