Introduction:

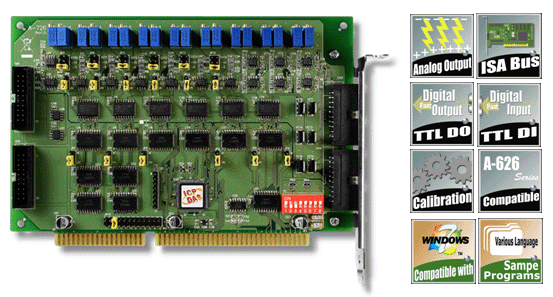

The A-726 card is the new generation product designed as completely compatible with the A-626.

The A-726 is 12-bit 6 analog output channels board with 16 digital input channels and 16 digital output channels. Each D/A channel supports both current and voltage output range which can be individually jumper selectable for different voltage range of +/-10 V, +/-5 V, 0 ~ 5 V, 0 ~ 10 V and 4 ~ 20 mA (sink) for current. With on board reference chip BB Ref-01 is used for solving the thermo-drifting issue of the reference voltage.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/Vista/7. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW are provided in order to help users quickly and easily develop their own applications.






Feature:
	ISA bus interface.
	6 channels, 12-bit analog output Voltage output range: 0 ~ 5 V, 0 ~ 10 V, ±5 V, ±10 V for each channel Current output range: 4 ~20 mA current sink to ground for each channel
	16-channel Digital Input(TTL) 16-channel Digital Output(TTL)
	Compatible with software of A-626
	Software calibration, the calibration is performed under software control eliminating manual trim-pot adjustments
	DOS Lib and TC/BC/MSC sample program (with source codes) VB/VC/Delphi/BCB sample programs with source codes. LabVIEW toolkit for Windows. Driver for Linux and DasyLab.
	DLL and OCX SDK for Windows 98/NT/2K and 32-bit Windows XP/2003/Vista/7
	Connects directly to DB-16P, DB-16R, DB-24PR and DN-20 IRQ level from IRQ3 ~ IRQ 15
