Introduction:

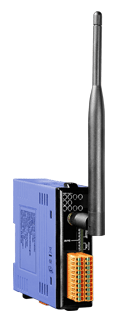

ZT-2060-IOP module acts as a ZigBee coordinator that provides 4-channel digital input and 4-channel digital output pair-connection function with module of ZT-2060(4-ch Form A power relay output, 6-ch digital input ZigBee module). An embedded I/O channel binding function means that there is no need to use an external controller.

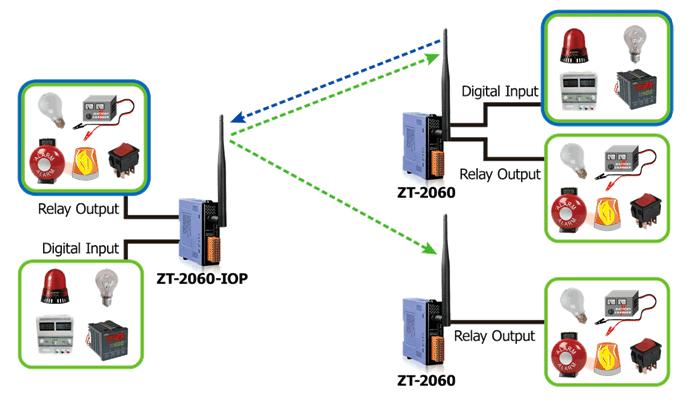

The status of each ZT-2060-IOP channel is bound to a remote channel of the ZT-2060. The ZT-2060-IOP constantly updates the status to the corresponding DO channel of the remote ZT-2060 based on its own DI channels. And vice versa, reads the status of the DI channel of the remote ZT-2060 to synchronize its own DO channels.

The ZT-2060-IOP also provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any difficult wiring environment.




Features:

• Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
• Fully Compliant with ZigBee Pro (ZigBee 2007)
• Wireless Transmission Range up to 700 m
• 4 Channels Pair-connection of the Digital Input and Relay Output
• External DIP Switch Configuration
• Surge and ESD Protection
• DIN-Rail Mountable



Applications:

For more information, please visit the following website:
https://www.icpdas.com/en/product/ZT-2060-IOP
