Introduction:

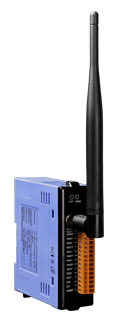

The ZT-2026 is a wireless ZigBee module that offers 4 differential analog input channels, 2 analog output channels, 2 digital input channels and 2 digital output channels and provides a programmable analog input and output range. Each analog input channel can be configured to an individual range and each has 240 Vrms over-voltage protection. There are also options for a Digital Output power-on value and a Digital Output safe value. Users can easily configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.




Features:

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G /ZigBee Specifications
• Wireless Transmission Range up to 700 m
• GUI Configuration Software (Windows Version)
• 8 Differential Analog Input Channels (mV, V)
• Individual Channel Configuration
• Open Thermocouple Detection
• Overvoltage Protection up to 240 Vrms
• DIN-Rail Mounting

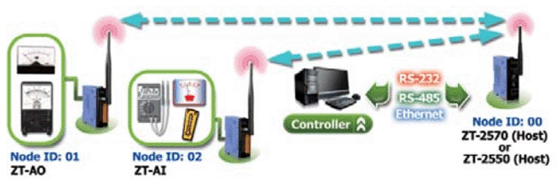

Applications:

For more information, please visit the following website:
https://www.icpdas.com/en/product/ZT-2026
