Introduction:

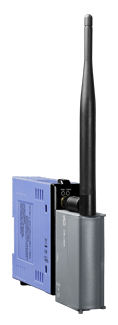

The ZT-2018 a wireless 16-bit, 8-channel differential analog input module with an extremely high quality protection mechanism where overvoltage protection is up to 240 Vrms. Input type includes current, voltage as well as thermocouple. and is much more suitable for harsh environments. Moreover, a newly-added feature that enables open thermocouple detection makes the ZT-2018 more attractive than ever. The ZT-2018 is also qualified for 4 kV ESD protection and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.




Features:

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G /ZigBee Specifications
• Wireless Transmission Range up to 700 m
• GUI Configuration Software (Windows Version)
• 8 Differential Analog Input Channels (mV, V)
• Individual Channel Configuration
• Open Thermocouple Detection
• Overvoltage Protection up to 240 Vrms
• DIN-Rail Mounting



Applications:

For more information, please visit the following website:
https://www.icpdas.com/en/product/ZT-2018_S
