Introduction:

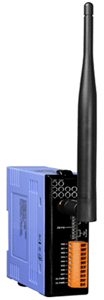

PRODUCTSSoftwareThe ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module of ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller.

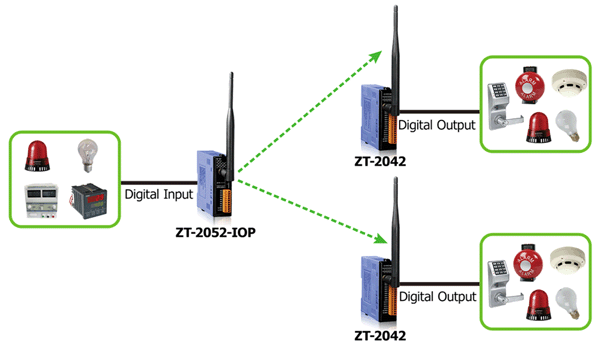

The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized.

The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult. MiniOS7



Features:

• Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
• Fully Compliant with ZigBee Pro (ZigBee 2007)
• Wireless Transmission Range up to 700 m
• 8 Channels Pair-connection of the Digital Input to the Digital Output
• External DIP Switch Configuration
• Surge and ESD Protection
• DIN-Rail Mountable



Applications:
