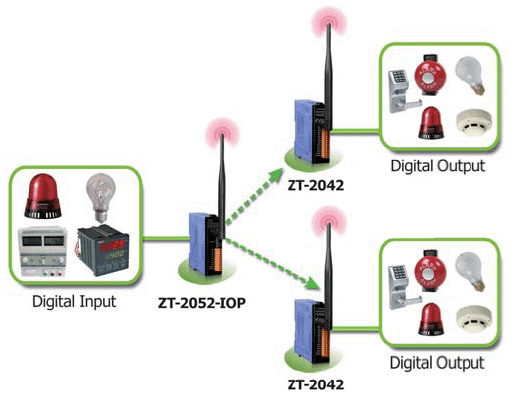

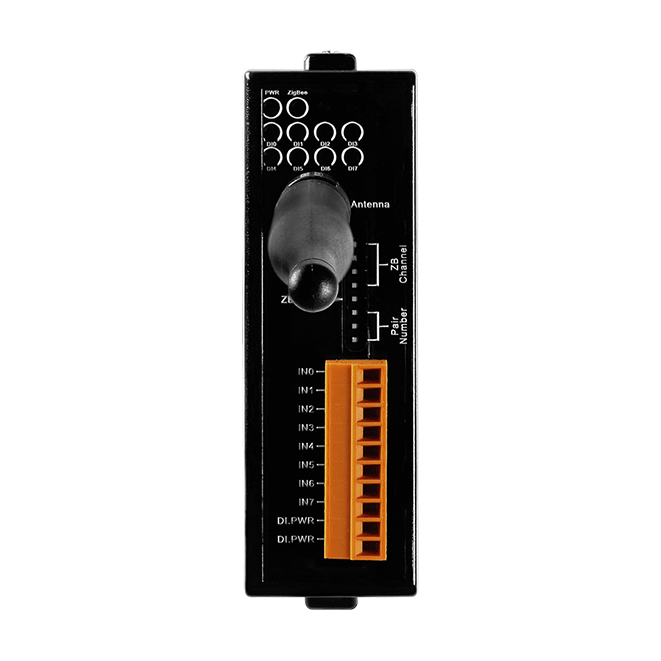

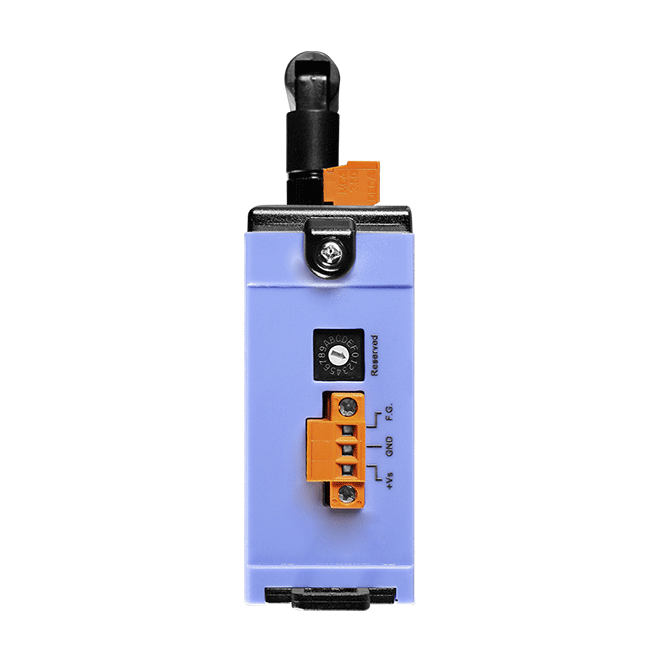

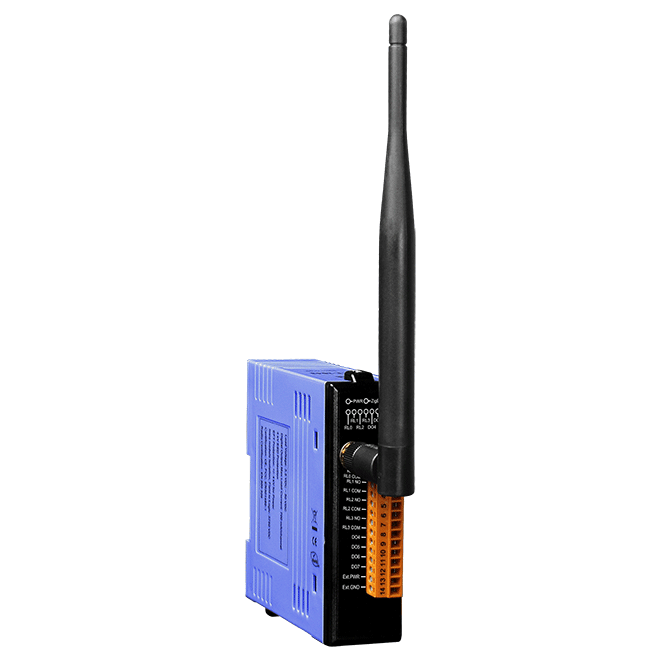

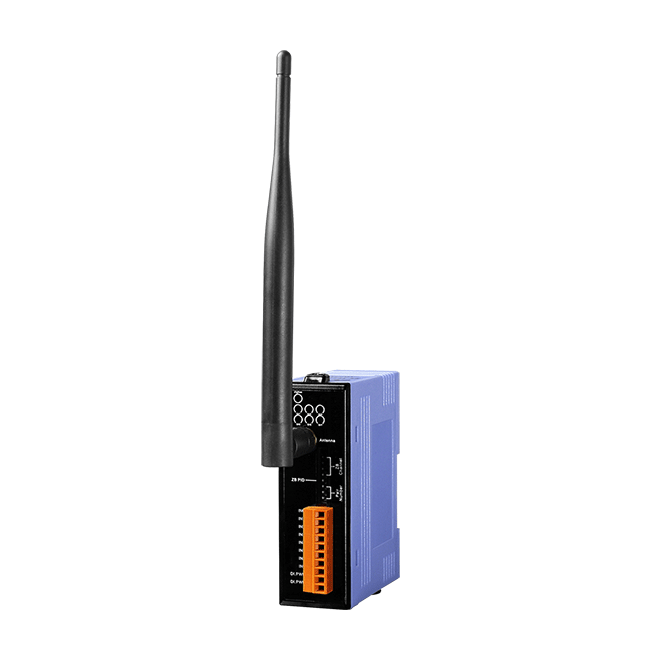

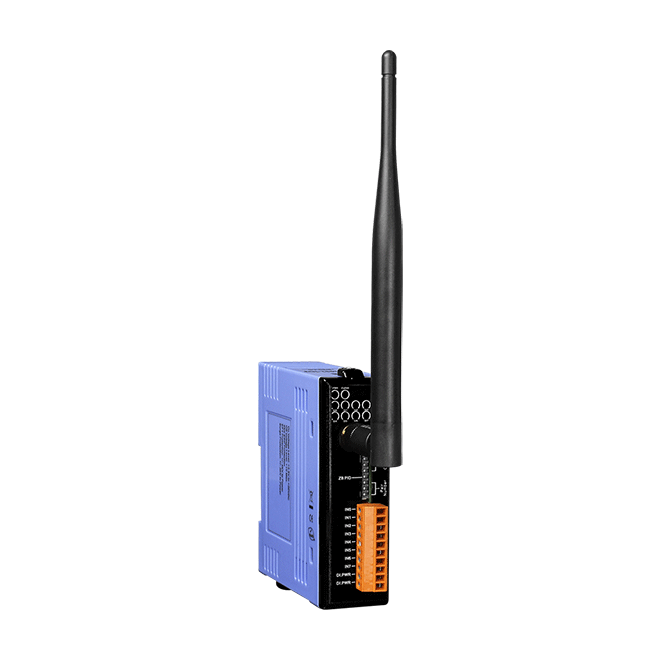

The ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module of ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller. The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized. The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.
