Introduction:

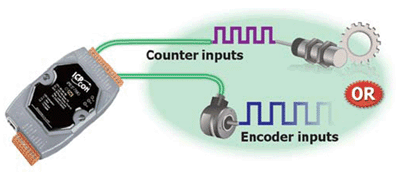

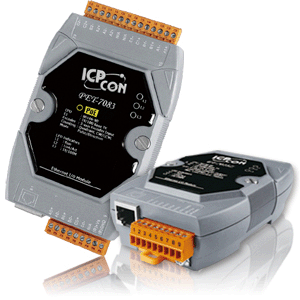

The ET-7083/PET-7083 is a 3-axis high speed encoder/counter module. Its each axis can be individually configured to Quadrant, Pulse/Direction or CW/CCW counting modes. The maximum input rate for Quadrant counting mode is 1 MHz, and for Pulse/Direction, CW/CCW counting modes is 4 MHz.
The module is equipped a FRAM to retain counter values on loss of power up to 10 years. ET-7083/PET-7083 continues the counter value when boot up while the FRAM is enabled, else counting from zero. The FRAN enable/disable is configurable by software.



Features:

• Built-in Web Server
• Web HMI
• Supports for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ + 75°C
• Built-in I/O
• 3-axis 32-bit encoder/counter inputs
• 1 MHz max. for Quadrant mode
• 4 MHz max. for CW/CCW, Pulse/Direction mode
• Count Value Retention for 10 years

More information:
https://www.icpdas.com/en/product/ET-7083
https://www.icpdas.com/en/product/PET-7083
