Introduction:

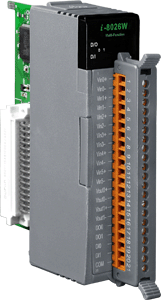

The I-8026W is a multifunction module that includes 6 analog input channels, 2 analog output channels, 2 digital input channels and 2 digital output channels. It provides a programmable input range on all analog input (±10 V, ±5 V ±2.5, ±1.25, ±20 mA (Jumper Select) ); analog outputs are 12 bit at ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V ,0 ~ 20mA. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.



Features:

• Multifunction (6AI, 2AO, 2DI and 2DO)
• Overload and Short Circuit Protection for Digital Output
• Individual Channel Configuration
• Jumper Selectable Voltage or Current Input/Output
• ±4 kV Contact ESD Protection
• Wide Operating Temperature Range: -25 °C to +75 °C

For more details, please visit:
https://www.icpdas.com/en/product/I-8026W-G
