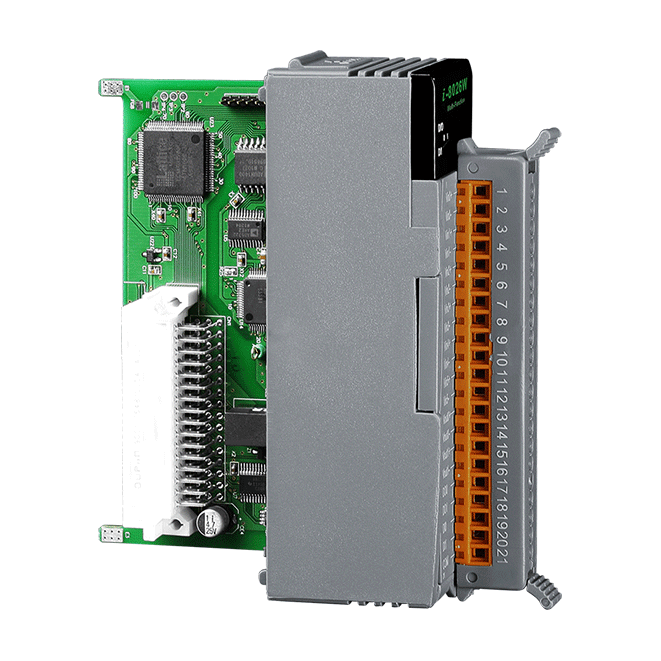

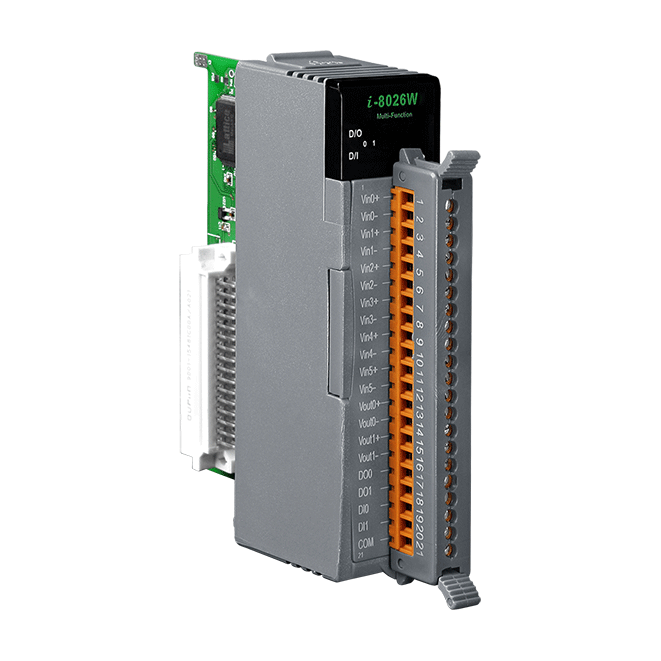

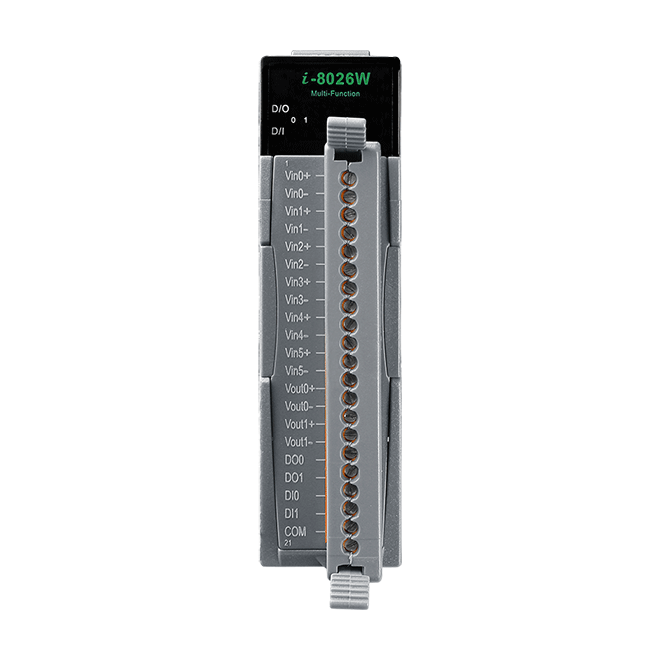

I-8026W-G
6-ch AI, 2-ch AO, 2-ch DI and 2-ch DO Module
Features
• Multifunction (6 AI, 2 AO, 2 DI and 2 DO)
• Overload and Short Circuit Protection for Digital Output
• Individual Channel Configuration
• Jumper Selectable Voltage or Current Input/Output
Introduction
The I-8026W is a multifunction module that includes 6 Analog Input channels, 2 Analog Output channels, 2 Digital Input channels, 2 Digital Output channels. It provides a programmable input range on all Analog Inputs (±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC, ±20 mA (Jumper Select), Analog Outputs are 12-bit at ±10 VDC, ±5 VDC, 0 ~ 10 VDC, 0 ~ 5 VDC, 0 ~ 20 mA. Each analog input can be confi gured for an individual range and provides a high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.
Applications
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 4 x I/O |
| Analog Input | |
|---|---|
| Channels | 6 |
| Range | ±10 V, ±5 V ±2.5, ±1.25, ±20 mA (Jumper Select) |
| Resolution | 12-bit |
| Accuracy | 0.2% of FSR ±1LSB |
| Sampling Rate | Max. to 9k Samples/Sec. |
| Input Impedance | >2 MΩ |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Analog Output | |
|---|---|
| Channels | 2 |
| Range | ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V, 0 ~ 20 mA (Jumper Select) |
| Resolution | 12-bit |
| Accuracy | ±0.2% of FSR |
| Voltage Output Capability | 10 VDC @ 20 mA |
| Digital Input | |
|---|---|
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ 30 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
|---|---|
| Consumption | 1.8 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
