Introduction:

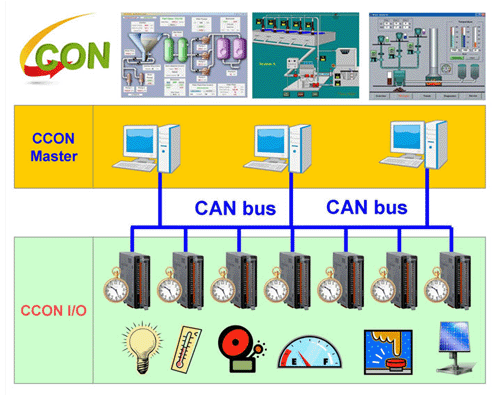

The CCON protocol is one of the application layer protocol on the CAN bus. It was developed by the ICP DAS. The CCON protocol is a simple and effective protocol for industrial automation applications. Based on the CAN bus layer, it could provide many safe and robust communication mechanisms like arbitration, error detection, error correction and etc. It could help to establish CAN network applications fast and easily. For more information about the CCON protocol.

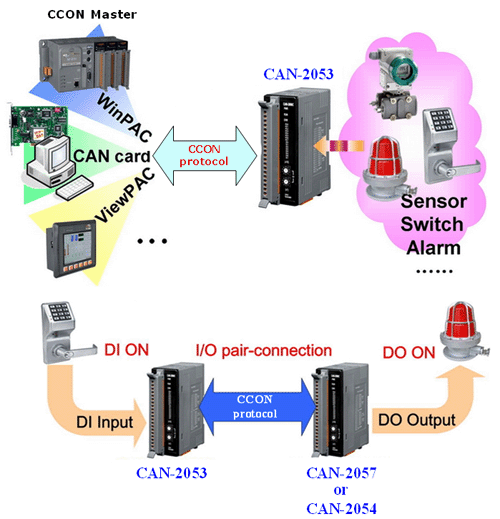

The CAN-2053 module follows the CCON version 2.00. You can access the digital I/O status and set the configuration by using the CCON protocol. The CAN-2053 has 16-channel isolated sink/source input, and it can be used in various applications, such as building automation, factory automation, machine automation, distributed data acquisition and so forth. By owing to the CCON masters of ICP DAS, you can quickly build a CCON network to approach your requirements. For more information about the CCON master interfaces and other CCON products.



Features:

• 16-ch isolated sink/source digital input.
• Rotary switch for Node ID (1~99).
• Support 100 I/O modules in single network.
• Duplicated ID detection.
• Reply DI data automatically.
• Built-in host heartbeat consumer.
• Provides pair-connection among other I/O modules.
• Supports CAN baud rate 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1M bps.
• Built-in switch for 120 Ω terminator resistors.
• ESD protection ±4 kV Contact for each channel.
• Operates temp. -25 to +75 ℃
• POWER, RUN, ERROR LED indicator.
• CCON protocol version: V2.00
