Introduction:

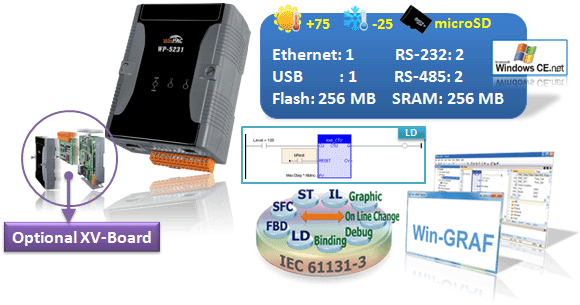

The Win-GRAF WP-5000 Series (WP-5238) is a new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. This series PAC is equipped with an AM3352 CPU (720 MHz) and running windows CE.NET 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in micro SD, the Win-GRAF WP-5000 series can save application program, image file and data.

The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 or VS 2010 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.



Features:

• AM3352, 720 MHz CPU
• 256 MB SRAM and 256 MB Flash
• Windows CE 7.0 Professional
• Support Win-GRAF SoftLogic (IEC 61131-3)
  • Ladder, FBD, ST, SFC, IL
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• Small, Palm-size, and support to expand the I/O by inserting one XV-board
• 10/100/1000M Ethernet Port
• 4 Serial Ports (RS-232/485)
• Operating Temperature: -25 ~ +75 °C

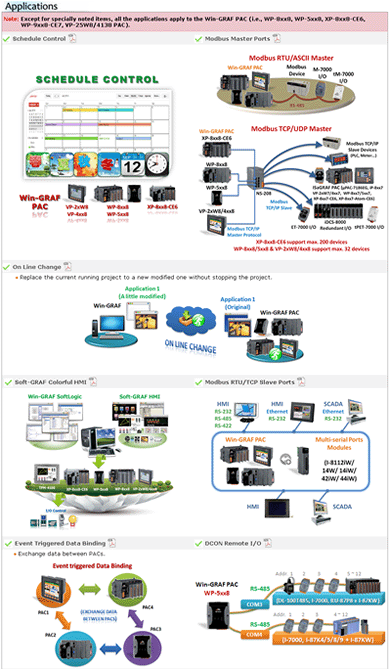

Applications:

The WP-5238 supports the following applications:
(Click the picture for more details.)







More Win-GRAF related products:

• The Win-GRAF Website: https://www.icpdas.com/en/product/guide+Software+Development__Tools+Win-GRAF

• The WP-5238 Web Page: https://www.icpdas.com/en/product/WP-5238-CE7
