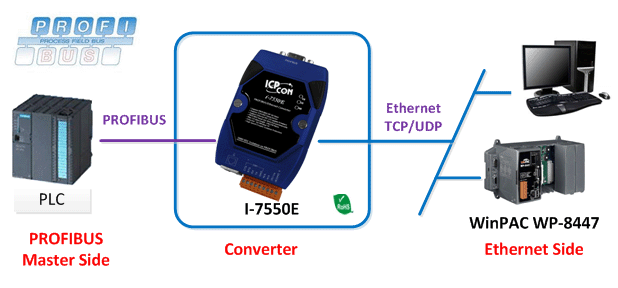

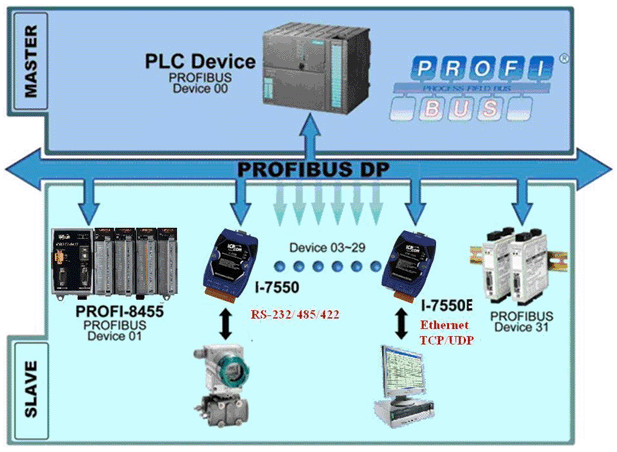

The I-7550E is a new PROFIBUS Converter to support PROFIBUS DP Slave and Ethernet network. It allows the PROFIBUS Master to access the Ethernet devices via TCP or UDP protocols. Users can set the I-7550E as TCP/UDP server or client to match their requirement. The I-7550E also provides Web Configuration for users to configure I-7550E via browser without any other tools. Therefore, I-7550E can be a powerful tool to exchange the data between PROFIBUS and Ethernet network. Moreover, the I-7550E can be applied in various hard environments by high isolation protection design. And it fits for remote data acquisition, control, process automation, and factory automation, etc.







Features:

• RoHS Design
• 16-bit Microprocessor inside with 80 MHz
• Profichip VPC3+C PROFIBUS controller
• Support PROFIBUS DP-V0 slave
• PROFIBUS transmission rate detected automatically
• Max transmission speed up to 12 Mbps for PROFIBUS
• Support TCP/UDP protocol
• Support TCP/UDP Server and Client
• Web Configuration
• Max length of in/output data is 240/240 Bytes
• Ethernet Port: 10/100 Base-TX
• Firmware update via Ethernet
• Support Virtual COM Port.

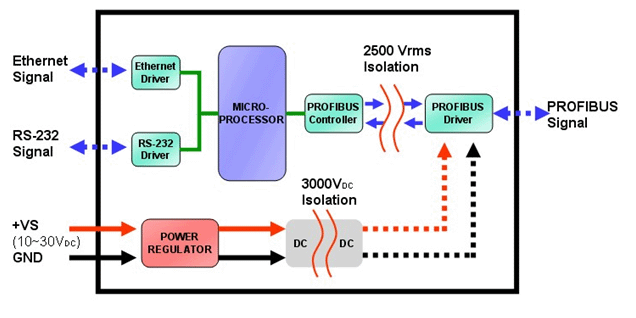

• 2500 Vrms High Speed iCoupler Isolation Protection for PROFIBUS network
• 3000 VDC Isolation Protection on the PROFIBUS side
• Provide LED indicators-PWD, ERR and RUN LEDs
• Built-in Watchdog
• Mountable on Rail DIN



Product Comparison

I-7550E and I-7550 are two converters designed for different communication interface applications. This table will show their features and functions, the user can select the products according this table.
