Introduction:

The VP-2201-CE7 is WINCE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provides a perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM AM3352 CPU, TFT LCD and a variety of connectives including a Gigabit Ethernet, USB port, RS-232 and RS-485 interface. I/O expansion is available for connections to Ethernet I/O modules or RS-485 I/O modules. It is designed for panel mount installation; the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. It can also operate over a wide range from -10°C to 60°C ambient temperature, the fanless design offers the ultimate in reliability with no moving parts.



Features:

• 7" TFT LCD
• AM3352, 720 MHz CPU
• CE7 (Windows Embedded Compact 7)
• Hard Real-Time Capability
• Support eLogger HMI (free)
• PoE (Power over Ethernet)
• NEMA 4/IP65 Compliant Front Panel
• Ultra-Rugged Construction and Reliable Design
• Operating Temperature: -10 °C to +60 °C

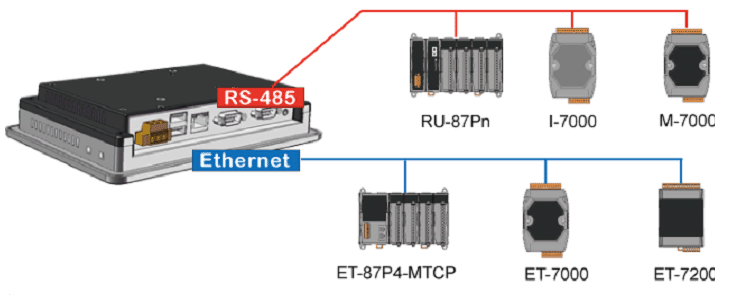

I/O expansion

More information https://www.icpdas.com/en/product/VP-2201-CE7
