IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP protocol provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712-MTCP is well-suited for smart home and building automation.





Application:

• Home Entertainment Devices
• Video Conferencing System
• Surveillance System
• e-Classroom service
• Lighting Scenario Control
• Home and Building Automation



Features:

• 2 IR output channels for controlling multiple devices.
• 1 IR learning input.
• IR command storage: 512
• Supports 6 learning IR carrier frequencies: 32.768、36、37.037、38、40 and 56 kHz.
• Supports Ethernet communication interface.
• Supports Modbus TCP/UDP protocol.
• Provides IR transmitting/learning and power indication LEDs.
• Built-in Watchdog.
• RoHS Compliance.

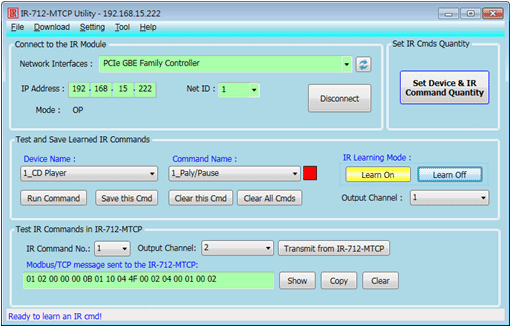

Utility:

IR Utility is the configuration utility for IR-712-MTCP with the following features:

• IR quantity configuration.
• IR commands learning and testing.
• Save IR learning commands to files.
• Get/Set IR learning commands from/to IR-712-MTCP.
• Reference to Modbus commands.
• Set/Reset basic settings of IR-712-MTCP.



Comparison of IR Learning Remote Modules

For more detail information, please refer to the following links: https://www.icpdas.com/en/product/IR-712-MTCP
