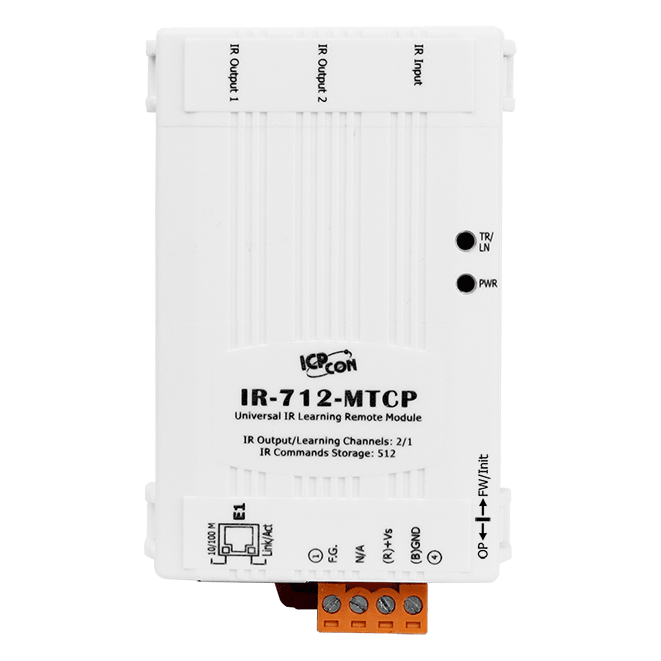

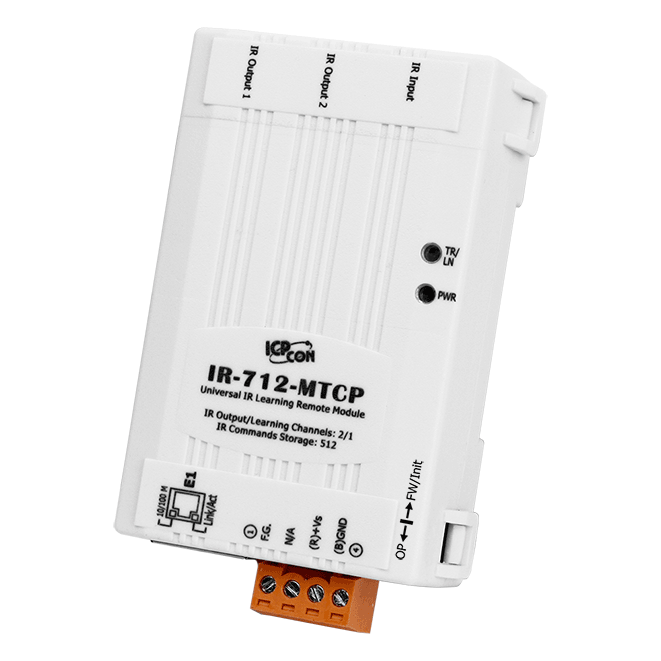

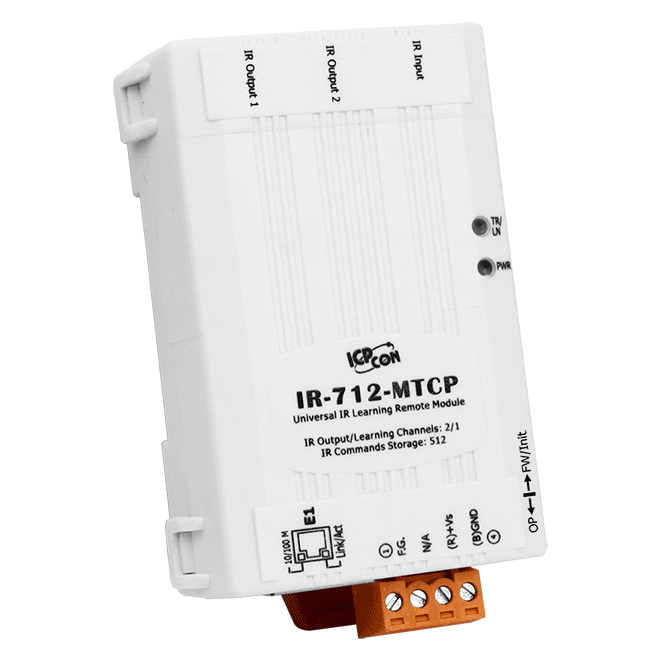

IR-712-MTCP
Universal IR Learning Module (2x IR outputs, 512x IR cmds)
Features
- 2 IR output channels.
- 1 IR learning input
- IR command capacity: 512
- Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
- Supports Ethernet interface.
- Supports Modbus TCP/UDP protocol to emit IR commands.
- Provides ASCII String Command (DCON over TCP/UDP) to emit IR signal.
- Includes 2x CA-IR-SH2251 IR emitter cables.
(Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)
Introduction
IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP and DCON protocols provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712-MTCP is well-suited for smart home and building automation.
Applications
- Home Entertainment Devices
- Video Conferencing System
- Surveillance System
- e-Classroom service
- Lighting Scenario Control
- Home and Building Automation
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x TR/LN (IR Transmitting/Learning) 1 x PWR (Power) |
| Infrared | |
|---|---|
| IR Learning Input | 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz. |

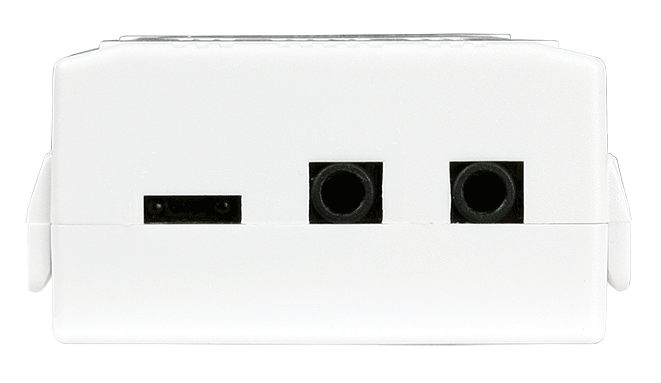

| IR Output Channels | 2 channels with 3.5 mm audio jack |
| IR Remote Commands | Capacity: 512 |
| Ethernet | |
|---|---|

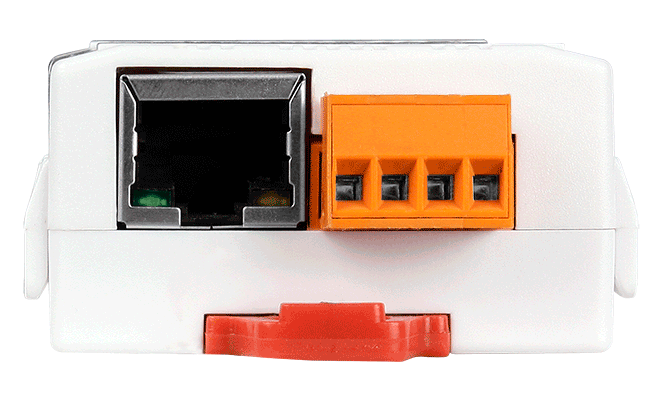

| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| Protocol | Modbus TCP/UDP server |
| Power | |
|---|---|
| Consumption | Stand By: 1.7W Using 1 IR output: 3.4W Using 2 IR Outputs: 5.8W (Max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 52 x 27 x 85 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | 25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
IR utility is the configuration tool for the IR-712-MTCP.
It provides the following functions:
It provides the following functions:
- IR quantity configuration
- IR commands learning and testing
- Save IR learning commands to files
- Get/Set IR learning commands from/to IR-712-MTCP.
- Reference to Modbus commands
- Set/Reset basic settings of IR-712-MTCP
- Shows the waveform of the IR learning commands.
