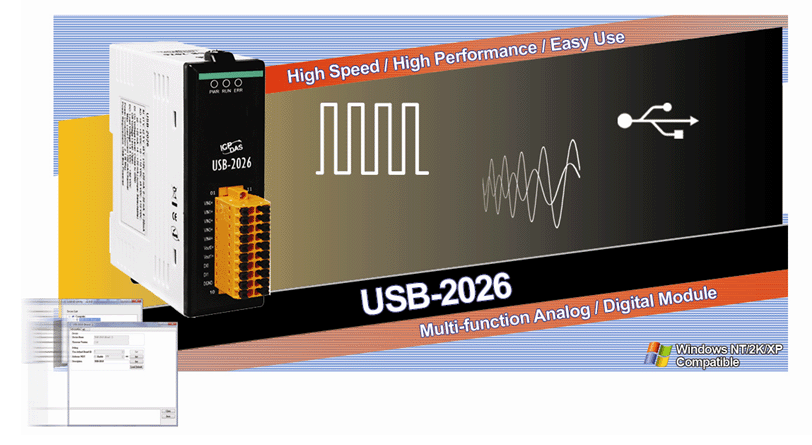

The USB-2026 provided by ICP DAS is a new solution of multifunction via USB interface. It provides easy USB plug-and-play operation and equips power rating relay for automation applications. Compared with the traditional PC-based card like PCI, PC/104 and ISA cards, users can achieve equipment control easier and quicker via USB-2026 and USB I/O Utility of ICP DAS.

USB-2026 is a multifunction module that includes 5 analog input channels, 2 analog output channels, 2 digital input channels, 2 digital output channels and compatibles with USB 2.0 full-speed. The USB-2026 provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Besides, the USB-2026 also features power-on value to customize the initial state. Moreover, the safety value can be used to secure the devices in the field. USB-2026 equips small size, portable, USB bus powered, various input/output type features to help user build up own multifuntion project quickly.



Features:

• Multifunction (5 AI, 2 AO, 2 DI and 2 DO)
• Overload and Short Circuit Protection for Digital Output
• 240 Vrms Overvoltage Protection for Voltage Input
• 4kV ESD protection
• Wide Operating Temperature Range
• 3000 VDC Intra-Module Isolation
• USB 2.0 Full-Speed
• USB Bus Powered
• Lockable USB cable
• Driver Free

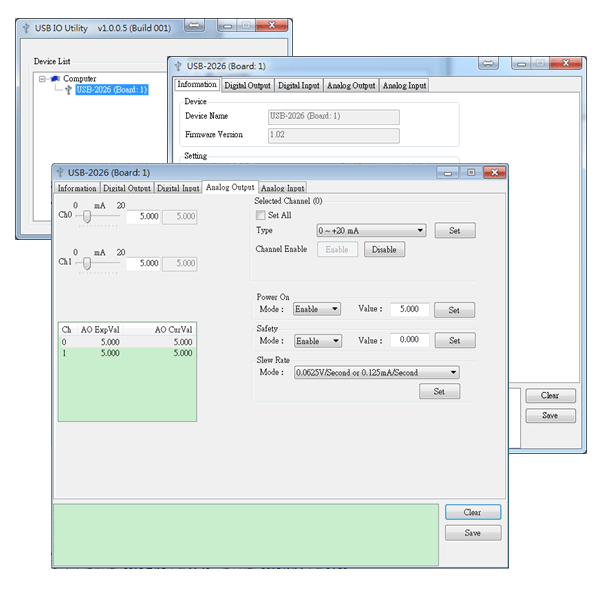

Utility Features :

• Automatically scan all ICP DAS USB I/O modules
• Easily and quickly configure and test USB I/O modules
• Completely and precisely log IO data for analysis
