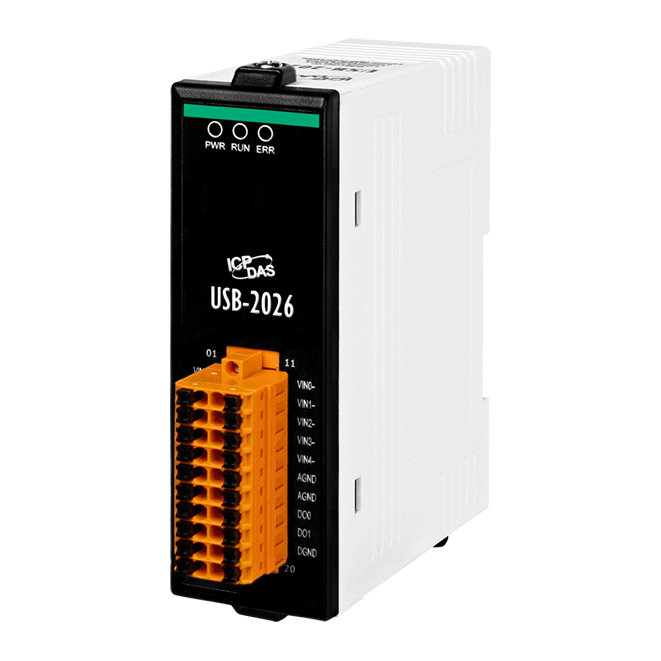

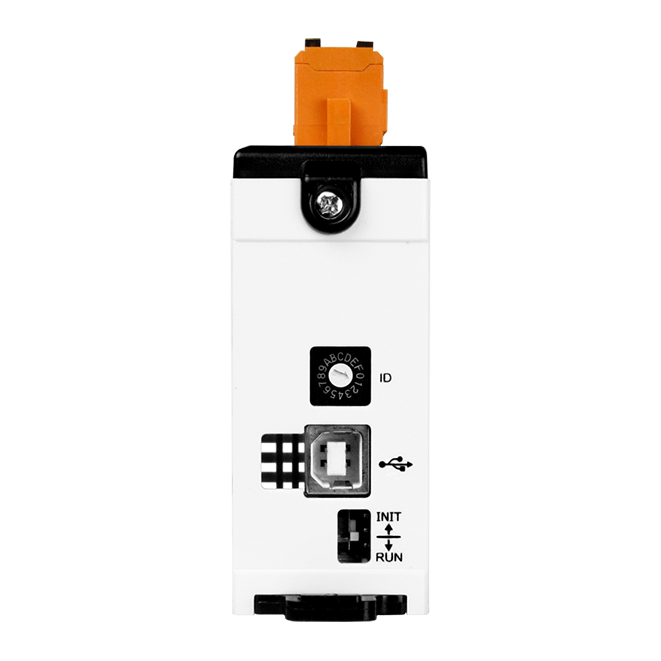

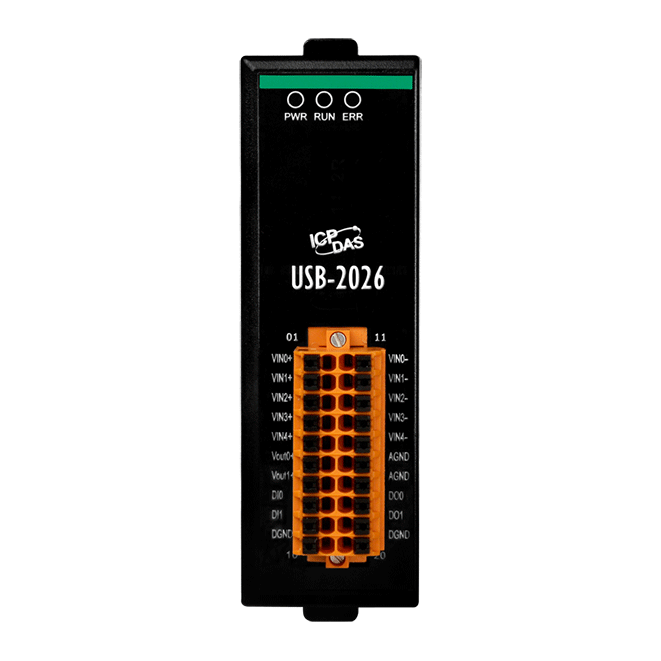

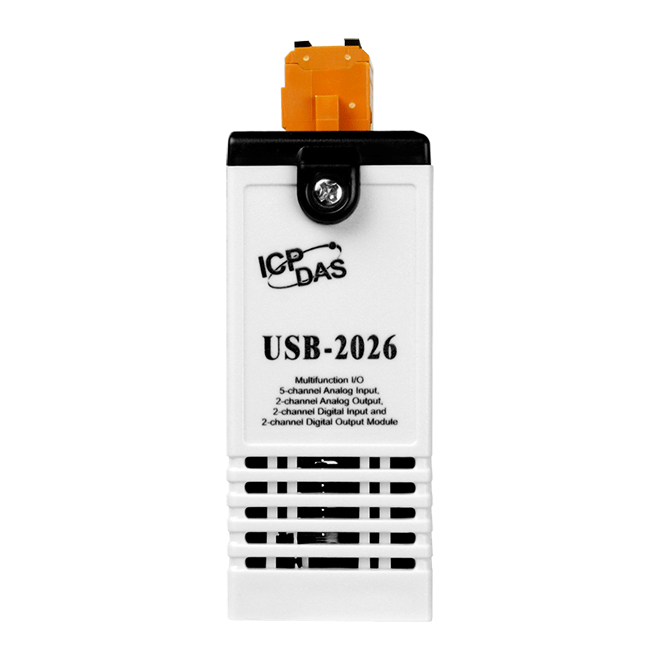

USB-2026
USB I/O Module with 5-ch AI, 2-ch AO, 2-ch DI and 2-ch DO
Features
• Multifunction (5 AI, 2 AO, 2 DI and 2 DO)
• Overload and Short Circuit Protection for Digital Output
• 240 Vrms Overvoltage Protection for Voltage Input
• 4~20 mA current output provide Open Wire Detection
• Individual Channel Configuration
• USB Bus Powered
• Lockable USB cable
• Driver Free
• Overload and Short Circuit Protection for Digital Output
• 240 Vrms Overvoltage Protection for Voltage Input
• 4~20 mA current output provide Open Wire Detection
• Individual Channel Configuration
• USB Bus Powered
• Lockable USB cable
• Driver Free
Introduction
The USB-2026 is a multifunction module that includes 5 analog input channels, 2 analog output channels, 2 digital input channels, 2 digital output channels and compatibles with USB 2.0 full-speed. It equips small size, portable, USB bus powered, various input type features to help user build up own project easily and quickly.
Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. ICP DAS USB I/O is a small size module. You can use these I/O modules in wide range application, ex: fan-less control or measurement, automatically testing with BOX-PC…etc.
The USB-2026 provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms.
We also provide API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2026 is the perfect choose for you to implement I/O expansion via a plug-and-play USB interface.
Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. ICP DAS USB I/O is a small size module. You can use these I/O modules in wide range application, ex: fan-less control or measurement, automatically testing with BOX-PC…etc.
The USB-2026 provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms.
We also provide API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2026 is the perfect choose for you to implement I/O expansion via a plug-and-play USB interface.
Applications
• Automation
• Measurement and testing
• Laboratory research
• Measurement and testing
• Laboratory research
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
|---|---|
| Status | 3 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 5 Differential |
| Type | Voltage Current |
| Range | Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | Normal Mode: 14-bit Fast Mode: 12-bit |
| Accuracy | Normal Mode: ±0.1% FSR Fast Mode: ±0.5 % FSR |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 200 Hz |
| Input Impedance | Voltage: 20 MΩ Current: 135 Ω |
| Overvoltage Protection | Voltage: 120 VDC Current: N/A |
| Overcurrent Protection | Voltage: N/A Current: Yes, 50 mA at 110 VDC |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Analog Output | |
|---|---|
| Channels | 2 |
| Range | Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC Current: +0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | Yes, for 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Power-on Value | Yes |
| Safe Value | Yes |
| Digital Input/Counter | |
|---|---|
| Channels | 2 |
| Type | Dry Contact, Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 32-bit |
| Frequency | 100 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | ±57 VDC |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Isolation Open Collector (Sink) |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | ±60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
|---|---|
| Consumption | 2.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 110 x 96 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
