PCIe-8622 – PCI Express, 200 kS/s High-speed, 16-bit 16-ch Simultaneously Sampled Analog Input Board with 12-ch Isolated DI/O
New Products
2015-09-30
Introduction:

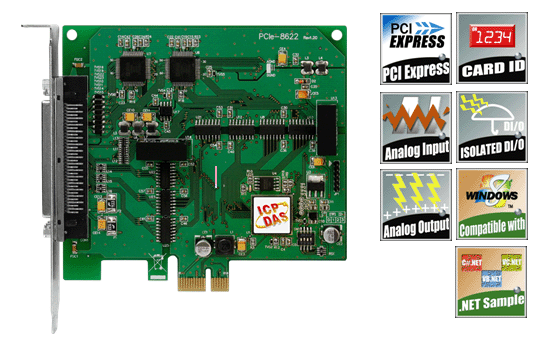

The PCIe-8622 is a bus-type, isolated high-speed AD multifunction board with 16-bit DA and isolated DI/O. The simultaneously sampled AD offers a mix of up to 16 single-ended, 16-bit Analog Input channels with a 2 k Sample hardware FIFO and 2500 VDC bus-typed isolation protection. All channels feature a programmable input range of ±10 V or ±5 V with a sampling rate up to 200 kS/s per channel.The PCIe-8622 supports the PCI Express bus and provides 12 isolated Digital Input channels, 12 isolated Digital Output channels and 2 Analog Output channels at 16-bit resolution. The board has a single high-density connector that reduces the amount of space required for installation.
Feature: |
||
|
 |
|
|
|
||
|
 |
|
|
|
||
|
 |
|
|
|
||
|
 |
|
|
|
||
|
 |
|
|
|
||
|
 |
|
|
|
||
|
 |
|
|
|
||
For more information, please visit the PCIe-8622 web site.
