Introduction:

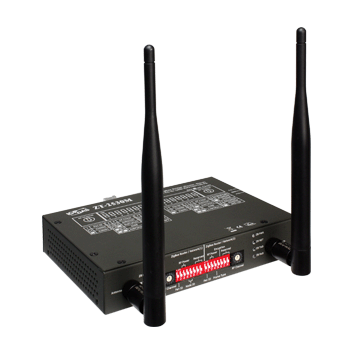

ZT-2530M is a ZigBee Bridge used to connect two different ZigBee networks. The absorption of wireless signals by buildings and other obstacles in the urban environments usually significantly impair wireless transmission. Therefore, ICP DAS provides the new ZT-2530M - the ZigBee bridge, which is equipped with dual antennas and combines a ZigBee coordinator with a ZigBee router. It is full hardware configuration, and can be used to bridge the communication between indoor and outdoor units or divide complex network in to groups to enhance efficiency.

The ICP DAS ZigBee products are designed primarily to help users to build a wireless communication system in an environment where it is hard to physically wire up the devices. They are widely used in industrial control, embedded sensing, medical data collection, smoke detection and intruder warning, building automation, home automation and so on.

For more information, please refer to the following links for relevant web site and documents for these devices:
https://www.icpdas.com/en/product/ZT-2530M



Hardware Features:

• Fully Compliant with ISM 2.4 G Operating Frequency (IEEE802.15.4)
• Fully Compliant with ZigBee Pro (ZigBee 2007)
• Wireless Transmission Range up to 700 m (Default)
• 5 dBi Omni-directional antenna Gain
• Fully External Switch for the Hardware Configuration
• Adjustable RF Transmission Output Power
• Supports AES-128 Encryption for Wireless Communication
• Surge and ESD Protection
• DIN-Rail Mountable

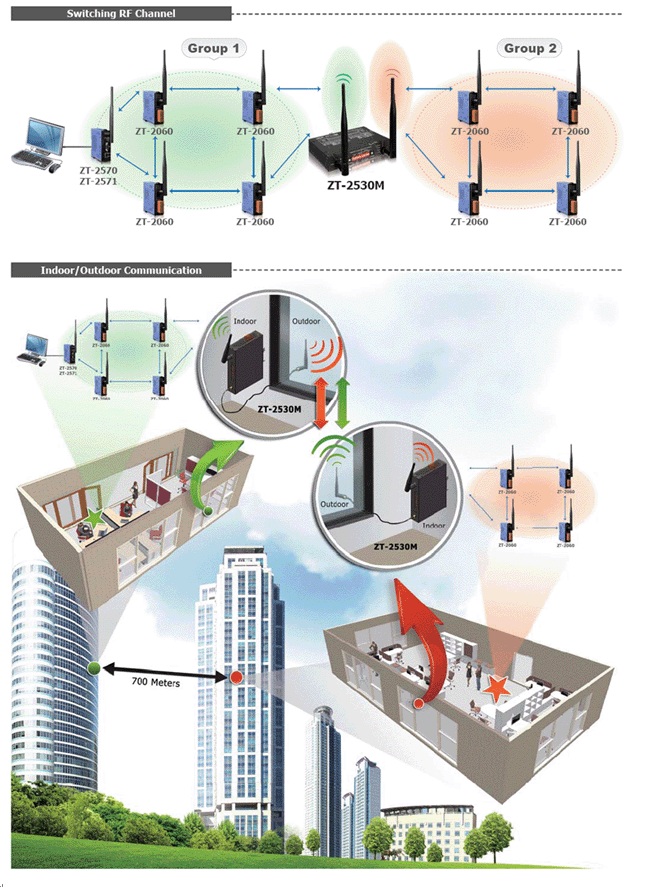

Applications:
