Introduction:

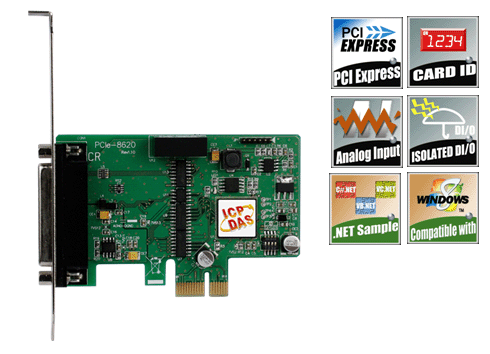

The PCIe-8620 is a bus-type, isolated high-speed Analog Input board with isolated DI/O. The simultaneously sampled AD offers a mix of up to 8 single-ended 16-bit Analog Input channels with a 2 k Sample hardware FIFO. All channels feature a programmable input range of ±10 V or ±5 V with a sampling rate up to 200 kS/s per channel. The PCIe-8620 provides 4 isolated Digital Input channels and 4 isolated Digital Output channels. The isolation range of the board has been increased to 2500 VDC, making it one of the most cost-effective solutions if isolated AD with DI/O boards is a main concern.

PCIe-8620 also includes a second-order anti-alias analog filter where the -3 dB frequency for the ±5 V input range is usually15 kHz, and is usually 23 kHz for the ±10 V input range.

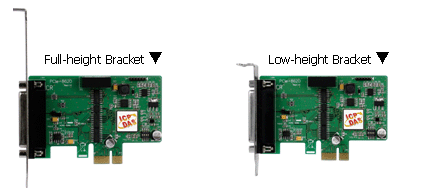

The PCIe-8620 is a low-profile PCI Express board that is suitable for computers with limited space, and is also suitable for standard-size computers since the board is shipped with both full-height and low-profile brackets.





Feature:
	Supports PCI Express x 1, Full-profile or Low-profile
	Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.
	4-channel Isolated Digital Input 4-channel Isolated Digital Output 2500 VDC isolation voltage
	8 Single-ended Analog Input Channels Synchronous Sample and Hold Analog Input Range: ±10 V, ±5 V 16-bit, 200 kS/s Sampling Rate for each channel Hardware FIFO for Analog Input with a total of 2048 Samples Built-in MagicScan Controller
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Support Microsoft Windows 8 32-/64-bit version OS Support Windows 98/NT/2000 and XP/2003/Vista/7 32-/64-bit version OS

For more information, please visit the PCIe-8620 web site.
