PCI-M512/PCI-M512U
PCI-M512: PCI, 512KB Memory Board with DI/DO
PCI-M512U: Universal PCI, 512KB Memory Board with DI/DO

~ Will be phased out ~

On-board 512 KB SRAM
Two Li-batteries, BT1 & BT2, for dual battery-backup the data of the SRAM
LED indicators for Li-batteries states: normal, low voltage, fault
16-bit general purpose TTL-compatible D/O
12-bit general purpose TTL-compatible D/I (DI4 ~ 15)
4-bit battery status read back (DI0 ~ 3)
[PCI-M512 only]
PCI card, supports 5 V PCI bus.
[PCI-M512U only]
Universal PCI card, supports both 5 V and 3.3 V PCI bus.


Model: PCI-M512	Model: PCI-M512U

The PCI-M512/PCI-M512U provides battery-backup 512 KB SRAM, 12-bit DI and 16-bit DO. In addition, the PCI-M512U supports both 5 V and 3.3 V PCI bus, while the PCI-M512 supports 5 V PCI bus only. The PCI-M512U (Universal PCI version) is designed as a drop-in replacement for the PCI-M512 (PCI version), so users can replace a PCI-M512 by a PCI-M512U directly without any software or driver modification.

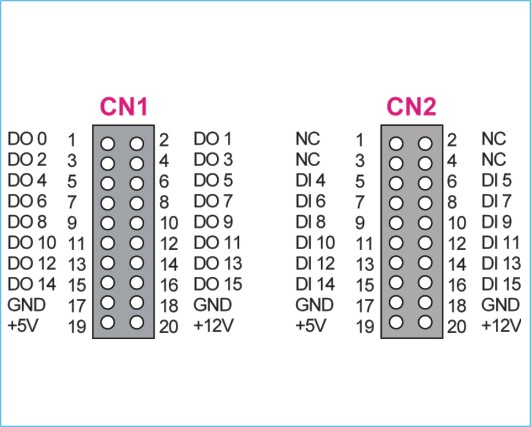

Users can use the DB-16P to connect the input ports (CN2) for isolation purpose, or use DB-16R to interface to the output ports (CN1) for relay control.

The PCI-M512/PCI-M512U is equipped with two Li-batteries to maintain the content of the 512 KB SRAM when PC power loss occurs. The two Li-batteries can continue supplying power to the SRAM to retain the important data for 10 years. The two-battery design also makes it safe to replace new batteries without losing data; when one battery is taken out for replacing a new one, the other continues to provide power to the SRAM.

4 LED indicators on the board are provided for giving clear understanding of the battery states such as normal, low voltage or fault. The PCI-M512/PCI-M512U is an ideal solution for improving system reliability.

DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 98/NT/2000
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Model Name	PCI-M512	PCI-M512U
Dgital Input
Channels	12
Compatibility	5 V/TTL
Input Voltage	Logic 0: 0.8 V max. Logic 1: 2.0 V min.
Response Speed	1.4 MHz (Typical)
Digital Output
Channels	16
Compatibility	5 V/TTL
Output Voltage	Logic 0: 0.4 V max. Logic 1: 2.4 V min.
Output Capability	Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed	1.4 MHz (Typical)
Special
SRAM Size	512 KB
Li-Battery	BT1 & BT2
Battery Status bits	BT1 Low, BT1 Bad, BT2 Low, BT2 Bad(low voltage=2.3 V, bad voltage=2.1 V)
LED Indicators	BT1 Low (Green), BT1 Bad (Red) BT2 Low (Green), BT2 Bad (Red)
General
Bus Type	5 V PCI, 32-bit, 33 MHz	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit(DI/DO), 32-bit(Memory)
I/O Connector	Male 20-bit ribbon x 2
Dimensions (L x W)	140 mm x 90 mm
Power Consumption	420 mA @ +5 V
Operating Temperature	-20 ~ 60 °C
Storage Temperature	-40 ~ 85 °C
Humidity	0 ~ 90% RH, non-condensing

PCI-M512 CR	PCI, 512 KB Memory Board with DI/O (RoHS)
PCI-M512U CR	Universal PCI, 512 KB Memory Board with DI/O (RoHS)

CA-2002	20-pin flat cable,20 cm x 2
CA-2010	20-pin flat cable,1 M
CA-2020	20-pin flat cable 2 M
DB-16P	16-channel Isolated Digital Input Daughter Board
DB-16R	16-channel Relay Output Daughter Board
DB-24PR	24-channel power relay board
DB-24POR	24-channel Photo Mos relay output board
DB-24C	24-channel open-collector output board
DN-20/DN-20-381	20-pin Din-Rail mounting I/O connector board
2LB004	BR2032 LITHIUM BATTERY, 3V, COIN CELL
