PCI-D96SU/PCI-D128SU
Universal PCI, 96/128-channel DIO Board

~ NEW ~	~ NEW ~

Model: PCI-D96SU	Model: PCI-D128SU

Support the +3.3/+5 V PCI bus
96/128 channels of Digital I/O
Bi-direction programmable I/O ports under software control
3/4 32-bit bi-direction I/O ports
DIO operating voltage: +1.8 V, +2.5 V, +3.3 V, +5 V
Pull-high/Pull-low Jumpers for DI channels
Digital Pattern Generator for DO channels
Pattern-matching and change state Interrupt monitoring
Supports Card ID (SMD Switch)
Supports a High-density SCSI II 100-pin Connector

The PCI-D96SU/D128SU card is a new generation product provided by ICP DAS to meet RoHS compliance requirements.

The PCI-D96SU/D128SU supports 3.3 V/5 V PCI bus. These cards provide 96/128 Digital I/O lines that consist of three/four 32-bit bi-directional ports for use in a variety of Digital I/O applications. Each channel could be setting for Digital Input or Output. They provide a variety of operating voltage (+1.8 V, +2.5 V, +3.3 V and +5 V) for customers need.

The PCI-D96SU/D128SU cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted. The PCI-D96SU/D128SU provides a single high-density connector that reduces the amount of installation space required for the card in the computer.

These cards support various OS versions, such as DOS and 32/64-bit Windows 10/8/7/2008/2003/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

DOS Lib and TC sample program (with source codes)
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.

Model Name		PCI-D96SU	PCI-D128SU
Programmable Digital I/O
Channels		96	128
Digital Inputs
Digital Signal Voltage Levels		+1.8 V, +2.5 V, +3.3 V, +5 V
Input Voltage	+1.8 V	Logic 0: < 0.65 V Logic 1: > 1.2 V
	+2.5 V	Logic 0: < 0.7 V Logic 1: > 1.7 V
	+3.3 V	Logic 0: < 0.8 V Logic 1: > 2.0 V
	+5 V	Logic 0: < 1.5 V Logic 1: > 3.5 V
Response Speed		1 MHz
Trigger Mode		Software (Pattern Match, Change of Status)
Data Transfer		Polling, Interrupt
Digital Outputs
Digital Signal Voltage Levels		+1.8 V, +2.5 V, +3.3 V, +5 V
Output Voltage	+1.8 V	Logic 0: < 0.65 V Logic 1: > 1.2 V
	+2.5 V	Logic 0: < 0.7 V Logic 1: > 1.7 V
	+3.3 V	Logic 0: < 0.8 V Logic 1: > 2.0 V
	+5 V	Logic 0: < 1.5 V Logic 1: > 3.5 V
Output Capability	+1.8 V	Sink: 1 mA Source: 1 mA
	+2.5 V	Sink: 2 mA Source: 2 mA
	+3.3 V	Sink: 4 mA Source: 4 mA
	+5 V	Sink: 5 mA Source: 5 mA
Response Speed		1 MHz
Operation Mode		Static update, Waveform generation
General
Bus Type		3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus		32-bit
Card ID		Yes(4-bit)
I/O Connector		Female SCSI II 100-pin x 1	Female SCSI II 100-pin x 1 20-pin Box Header x 2
Dimensions (L x W)		129 mm x 105 mm
Power Consumption		600 mA @ +5 V	760 mA @ +5 V
Operating Temperature		0 ~ 60 °C
Storage Temperature		-20 ~ 70 °C
Humidity		5 ~ 85% RH, non-condensing

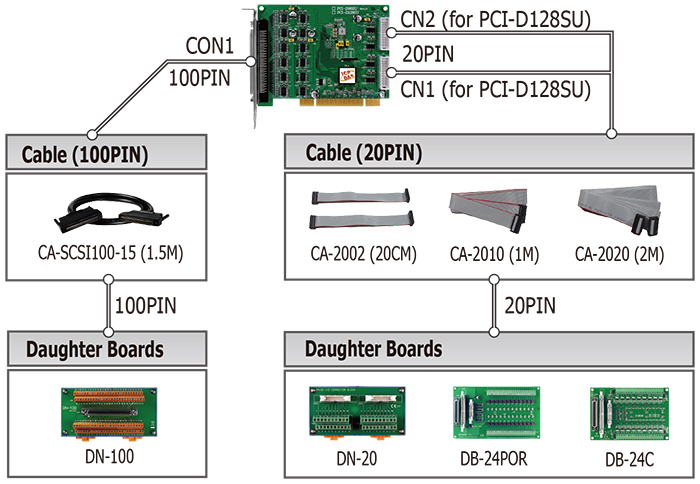

PCI-D96SU CR	Universal PCI, 96-channel DIO board (SCSI II Connector, RoHS)
PCI-D128SU CR	Universal PCI, 128-channel DIO board (SCSI II Connector, RoHS)

CA-2002	20-pin flat cable, 20 cm x 2 (for PCI-D128SU)
CA-2010	20-pin flat cable, 1 M (for PCI-D128SU)
CA-2020	20-pin flat cable 2 M (for PCI-D128SU)
CA-SCSI100-15	SCSI II 100-pin & 100-pin Male connector cable 1.5M
DN-100	I/O Connector Block with DIN-Rail Mounting and 100-Pin SCSI II Connector
DN-100-CA	I/O Connector Block with DIN-Rail Mounting and 100-Pin SCSI II Connector Include one CA-SCSI100-15 cable
DN-20/DN-20-381	Two 20-pin header DIN-rail terminal board (for PCI-D128SU)
DB-24POR	24-channel of PhotoMos Relay output board (for PCI-D128SU)
DB-24C	24-channel of open-collector output board (for PCI-D128SU)
