PCI-1602U/PCI-1602FU
Universal PCI,32ch, 16-bit, 100 kS/s(200 kS/s) Low Gain Multi-function DAQ Board
(8 K word FIFO) |
|
| |
 |
| PCI-1602U/PCI-1602FU |
|
|
 |
- Universal PCI interface, supports both +5 V and +3.3 V PCI bus.
- Card ID function
- Pull-high/ pull-low resistors for DI
- 16-channels digital Input
- 16-channels digital output
- 2 channels, 12-bit analog output
- 16-bit high resolution, 100 k/Ss (200 kS/s for F version) A/D converter
- 32 single-ended/16 differential analog inputs
- Programmable low gain:1/2/4/8
- Built-in 8 k WORD FIFO
- Built-in MagicScan controller
- Support internal/external trigger
- Three external triggers: post-trigger, pre-trigger, middle-trigger
|
|
|
| |
 |
The PCI-1602U/1602FU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-1602U/1602FU has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 100 kS/s (200 kS/s for F version) 16-bit resolution A/D converter, 8 K-sample hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 16-bit D/A converter, 16-ch digital input and 16-ch digital output. The PCI-1602U/1602FU provides either 32-ch single-ended or 16-ch differential analog inputs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1, 2, 4 and 8). The PCI-1602U/FU are fully compatible with the PCI-1602/F, and users can replace the PCI-1602/F by the PCI-1602U/FU directly without software/driver modification.
The PCI-1602U/1602FU has a Card ID switch for users to recognize the board by the ID via software when using two or more PCI-1602U/1602FU cards in one computer. The pull-high/pull-low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.
The PCI-1602U/1602FU cards support Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK of the I/O cards provides DLL, Active X control, and sample programs with source code for users to implement application programs quickly and easily. The demo programs with source code in Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided.
ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model). |
ICP DAS PC-Based Multifunction Board Selection Guide |
Model Name |
D/A Channel |
A/D Channel |
A/D Sampling Rate |
FIFO Size |
Software Trigger (Polling) |
Pacer Scan (Magicscan) |
Post-trigger
Pre-trigger
Middle-trigger |
Interrupt function |
|
| PCI-1202LU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
110 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1202HU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1602U |
12-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
100 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1602FU |
12-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
200 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1800LU |
12-bit, 2-ch |
12-bit, 16 S.E/8 Diff |
330 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1800HU |
12-bit, 2-ch |
12-bit, 16 S.E/8 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1802LU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
330 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1802HU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
44 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-822LU |
16-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective Programmable DIO |
| PCI-826LU |
16-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective Programmable DIO |
|
| |
 |
- High speed data acquisition system
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
|
| |
 |
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux.
|
| |
 |
| Model Name |
PCI-1602 |
PCI-1602F |
PCI-1602U |
PCI-1602FU |
| Analog Input |
| Channels |
32 single-ended/16 differential |
| A/D Converter |
16-bit, 2 μs conversion time |
| Sampling Rate |
100 kS/s. max. |
200 kS/s. max. |
100 kS/s. max. |
200 kS/s. max. |
| FIFO Size |
8192 samples |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pF |
| Trigger Modes |
Software, Internal programmable pacer, External (5 V/TTL compatible) |
| Data Transfer |
Polling |
| Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
+/- 2 ppm/°C of FSR |
| Analog Output |
| Channels |
2 |
| Resolution |
12-bit |
| Accuracy |
0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Output Range |
Bipolar:+/5 V, +/-10 V |
| Output Driving |
+/- 5 mA |
| Slew Rate |
8.33 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Dgital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
3.0 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
3.0 MHz (Typical) |
| Timer/Counter |
| Channels |
3(Independent x 1/Internal pacer x 1/External pacer x 1) |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 8 MHz |
| General |
| Bus Type |
5 V PCI, 32-bit, 33 MHz |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Card ID |
No |
Yes(4-bit) |

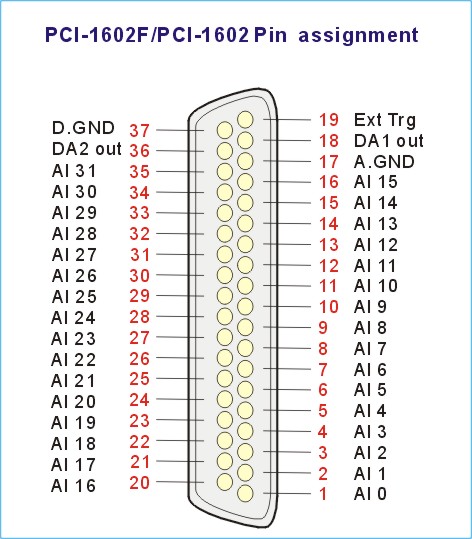

| I/O Connector |
Female DB37 x 1
Male 20-bit ribbon x 2 |
| Dimensions (L x W x D) |
188 mm x 105 mm x 22 mm |
| Power Consumption |
300 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Analog Input Range |
| Model |
PCI-1602/PCI-1602U
|
| Gain |
1 |
2 |
4 |
8 |
| Bipolar |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
| Sampling Rate Max. |
100 |
|
| Model |
PCI-1602F/PCI-1602FU |
| Gain |
1 |
2 |
4 |
8 |
| Bipolar |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
| Sampling Rate Max. |
200 |
|
|
| |
 |
| Universal PCI Version |
| PCI-1602U |
Universal PCI, 32ch, 16-bit, 100 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO)
Includes one CA-4002 D-Sub connector. |
| PCI-1602FU |
Universal PCI, 32ch, 16-bit, 200 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO)
Includes one CA-4002 D-Sub connector. |
| OEM Version |
| PCI-1602U/S |
PCI-1602U with DB-1825 daughter board, Cable
Includes one CA-3710 D-Sub cable. |
| PCI-1602FU/S |
PCI-1602FU with DB-1825 daughter board, Cable
Includes one CA-3710 D-Sub cable. |
| PCI Version |
| PCI-1602F |
PCI bus, 32ch, 16-bit, 200 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO)
Includes one CA-4002 D-Sub connector. |
|
| |
 |
| ADP-20/PCI |
Extender, Extended dual 20-pin flat-cable connector to PC slot window |
| CA-2002 |
20-pin flat cable, 20 cm x 2 |
| CA-2010 |
20-pin flat cable,1 M |
| CA-2020 |
20-pin flat cable 2 M. |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°)) |
| CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS) |
| CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| DB-1825 |
Analog Input Screw terminal Board |
| DB-16P |
Isolated Digital Input Daughter Board |
| DB-16R |
Relay Output Daughter Board |
| DN-20/DN-20-381 |
20-pin DIN-RAIL mounting I/O connector board |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
| 125Ω, 0.1% DIP Resistors |
125 Ω External Resistor for use with Current Input |
|
| |
 |
| |
 |
|
| |
|
|
| |
|
|
