ZB-2570-T/ZB-2570-PA/ZB-2571-T/ZB-2571-PA
Ethernet/RS-485/RS-232 to ZigBee Converter

~ Phased out ~


ISM 2.4 GHz Operating Frequency Fully Compliant with 2.4 G IEEE802.15.4/ZigBee Specifications Wireless transmission range up to 100 m (ZB-2570-T/ZB-2571-T) Wireless Transmission Range up to 700 m (ZB-2570-PA/ZB-2571-PA) Topologies Supported: Star, Cluster Tree, and Mesh GUI Configuration Software (Windows Version) DIN-Rail Mountable

Model: ZB-2570-T/ZB-2570-PA/ZB-2571-T/ZB-2571-PA

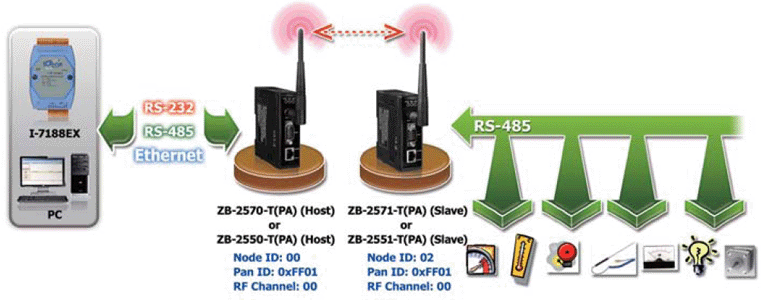

The ZB-2570 series is a host ZigBee converter, and the ZB-2571 series is a slave ZigBee converter. Each features an Ethernet/RS-485/RS-232 interface. Devices that have an Ethernet/RS-485/RS-232 interface are also able to be connected using the ZB-2570 and ZB-2571 series. By distributing host and slave ZigBee converters in the field, users can easily build a wireless network for monitoring and control.

ZigBee is based on the IEEE 802.15.4 standard for wireless personal area networks (WPANs). It is aiming at applications that require secure networking as well as high fl exibility for network expansion anytime. It is also widely used in the industrial control field, hospitals, labs and building automation.

Models	ZB-2570-T	ZB-2570-PA	ZB-2571-T	ZB-2571-PA
ZigBee Module
RF Channels	16
Receiving Sensitivity	-102 dBm
Transmit Power	4 dBm	22 dBm	4 dBm	22 dBm
Network Topology	Star, Mesh and Cluster tree
Antenna (Omni-Directional)	2.4 GHz – 3 dBi	2.4 GHz – 5 dBi	2.4 GHz – 3 dBi	2.4 GHz – 5 dBi
Transmission Range	100 m	700 m	100 m	700 m
Certification	CE/FCC, FCC ID	No	CE/FCC, FCC ID	No
General
Module Type	Host		Slave
Communication Interface
COM 0	D-Sub 9 Female Non-isolated ; RS-232 (TxD, RxD, GND); RS-485 (DATA+, DATA-;internal self-tuner ASIC)		D-Sub 9 Male Non-isolated; RS-232 (TxD, RxD, GND); RS-485 (DATA+, DATA-;internal self-tuner ASIC)
Ethernet	10/100 Base-TX (Auto-negotiating, auto MDI/MDI-X, LED indicators)
LED Indicators
ZigBee Net State	Green
ZigBee RxD	Yellow
Power	Red
Power
Protection	Power reverse polarity protection
EMS Protection	ESD, Surge, EFT
Required Supply Voltage	+10 VDC ~ +30 VDC
Power Consumption	2.5 W	4 W (max.)	2.5 W	4 W (max.)
Connection	5-Pin 5.08 mm Removable Terminal Block
Mechanical
Casing	Plastic
Flammability	UL 94V-0 fire-retardant materials
Dimensions (W x L x H)	33 mm x 107 mm x 78 mm
Installation	DIN-Rail
Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-40 °C ~ +80 °C
Relative Humidity	5% ~ 90% RH, Non-condensing

ZB-2570-T CR	Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS)
ZB-2570-PA CR	Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
ZB-2571-T CR	Ethernet/RS-485/RS-232 to ZigBee Converter (Slave) (RoHS)
ZB-2571-PA CR	Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Slave) (RoHS)

Power Supply
ZigBee AIO
ZigBee DIO
ZigBee Repeater
ZigBee Converter
ANT-8	1 Km external antenna
ANT-15	5 Km external antenna (Omnidirectional)
ANT-18	9 Km external antenna (Directional)
ANT-21	12 Km external antenna (Directional)
ANT-15YG	5 Km external antenna (Directional)
