ANT-21(Directional)
15 Km external antenna (Directional)
Gain : 21dBi |
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|

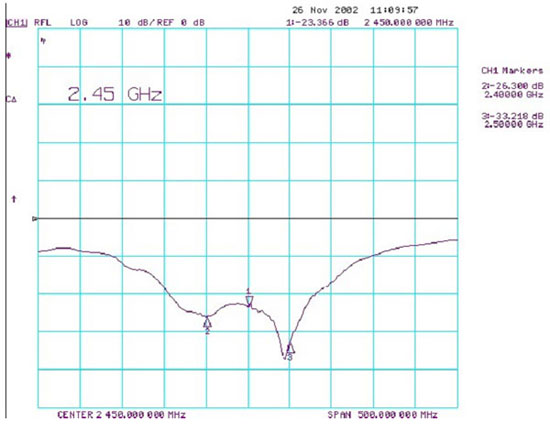

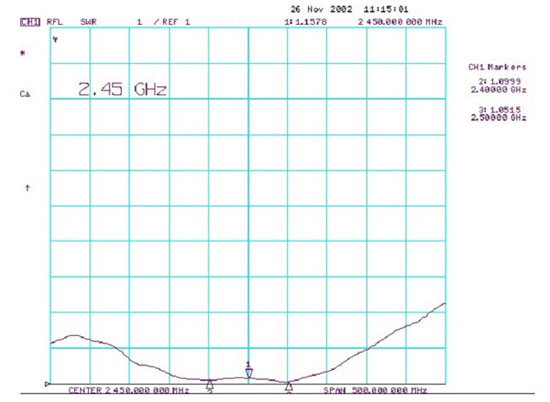

| |
| Gain: 21dBi |
| VSWR : 1.3:1 Max |
| Polarization: Vertical |
| Power handling: 10W |
| Impedance: 50 Ohms |
| Connector: SMA |
| Cable: RG-58, 100cm |

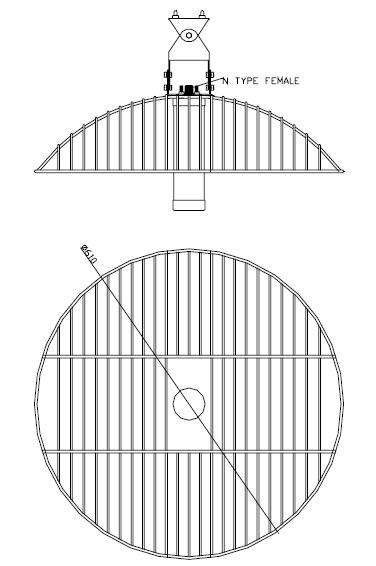

| Dimension: φ610 x150 (mm) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Usage Diagram |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
E-Plane Field Patterns |
H-Plane Field Patterns |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| ANT-21 |
15 Km external antenna (Directional)
Gain : 15dBi |
| Includes |
3S004 x 1 ( HDF 200 cable, 1 meter long N type male to SMA male ) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| 3S005 |
HDF 200 cable, 3 meter long N type male to SMA male |
| 3S006 |
HDF 200 cable, 5 meter long N type male to SMA male |
|
|
| |
|
|
|
|
|
| |
|
|
