ANT-15YG
ANT-15YG(Directional)
5 Km external antenna (Directional)
Gain : 15dBi






Frequency 2.4~2.5GHz
Polarization Linear
V.S.W.R. 1 : 2.0 (Max.)
Impedance 50 Ohms
Gain 15 dBi
Power handling 10W (Max.)
HPBW / horizontal 25¢X
HPBW / vertical 18¢X
Operating Temperature -20¢XC ~ 60¢XC







Connector Type SMA Male
Cable RG-58, 100 cm
Deminsions (L x W x H) 325 mm x 70 mm x 15 mm
Weight 425 g
Radome material Aluminum

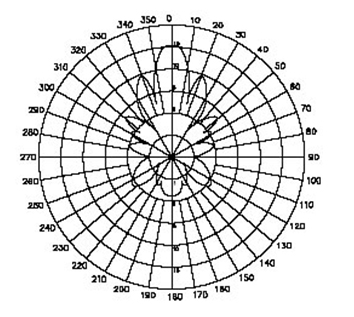

  H-PLANE FIELD PATTERNS


  E-PLANE FIELD PATTERNS






 ANT-15YG 5 km external antenna (Directional)
Gain : 15dBi






3S007 RG58A/U cable, 5 meter long SMA male to SMA female
3S008 RG58A/U cable, 10 meter long SMA male to SMA female
