ZB-2060-T/ZB-2060-PA
Wireless 6-channel Isolated Digital Input and 4-channel Relay Output Module

~ Phased out ~
Model: ZB-2060-T

Model: ZB-2060-PA

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m (PA-Version)
  • Wireless Transmission Range up to 100 m (T-Version)
  • GUI Configuration Software (Windows Version)
  • 6 Digital Input Channels and 4 Relay Output Channels
  • Supports 16-bit Counters for Digital Input Channels
  • Surge and ESD Protection
  • DIN-Rail Mountable

The ZB-2060-T/ZB-2060-PA offers 4 Form A power relay output channels and 6 digital input channels, each of which features photocouple isolation. In addition, you can choose sink-type or source-type input via wire connections. All channels are able to be used as 16-bit counters. The ZB-2060-T/ZB-2060- PA has 10 LED indicators to display the channel status, and has 4 kV ESD protection and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ZB-2060-T ZB-2060-PA
Digital Input
Input Channels 6
Input Types Isolated, Wet Contact (Sink/Source)
Input Level On Voltage Level: +3.5 VDC ~ +30 VDC
Off Voltage Level: +1 VDC Max.
Input Impedance 3 kΩ, 0.33 W
Counters Channels: 6
Max. Count: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Relay Output
Output Channels 4
Output Types Power Relay, Form A
Contact Rating 5 A @ (250 VAC/30 VDC)
Max. Contact Voltage 270 VAC/125 VDC
Operate Time 10 ms max. at Rated Voltage
Release Time 5 ms max. at Rated Voltage
Endurance Electrical Resistive Load: 100,000 ops. min. (10 ops/minute)
Mechanical At No Load: 20,000,000 ops. min. (300 ops/minute)
Dielectric
Strength		 Between Contacts 750 VAC for 1 minute
Between Coil
to Contacts		 3,000 VAC for 1 minute
Insulation Resistance 5,080 V (1.2/50 μs)
Surge Strength 5 ms Max. at rated voltage
ESD Protection +/-4 kV contact for each channel

Models ZB-2060-T ZB-2060-PA
Communication Interface
Wireless Standards ZigBee, IEEE 802.15.4
Transmission Power 4 dBm 22 dBm
2.4 GHz Antenna 3 dBi Omni directional 5 dBi Omni direction
Transmission Range (LoS) 100 m 700 m (Typical)
1 km (Max.)
Certification CE/FCC, FCC ID -
Max. Slaves in a ZigBee Networ 254
ZB-100R/ZB-100T Support Yes
Protocols Supports DCON and Modbus RTU Protocols
Hot Swap Rotary and DIP switch
LED Indicators
Power 1 LED, red
ZigBee Communication 1 LED, green
Digital Input and Output 10 LEDs, green
Power
Power Consumption 1.2 W Max.
Mechanical
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 87 mm x 107 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Relative Humidity 10 ~ 90% RH, Non-condensing

ZB-2060-T CR Wireless 6-channel Isolated Digital Input and 4-channel Relay Output Module (RoHS)
ZB-2060-PA CR Wireless 6-channel Isolated Digital Input and 4-channel Relay Output Module (RoHS) (Long Range)

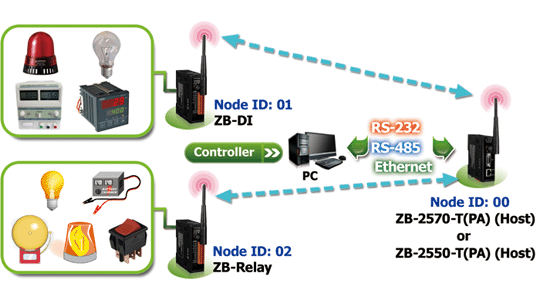

Important Note: ZigBee Data Acquisition modules need a ZigBee host converter to coordinate the data transmission route. Please remember to order a
ZB-2550-T, ZB-2550-PA, ZB-2570-T or ZB-2570-PA ZigBee host converter when you purchase ZigBee Data Acquisition Products.

MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting
ZB-2510-T CR ZigBee Repeater (RoHS)
ZB-2010-PA CR ZigBee Repeater (RoHS)
ZB-2550-T CR RS-485/RS-232 to ZigBee Converter (Host)
ZB-2550-PA CR RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
ZB-2570-T CR Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS)
ZB-2570-PA CR Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
