ZB-2550-T/ZB-2550-PA/ZB-2551-T/ZB-2551-PA
RS-485/RS-232 to ZigBee Converter

~ Phased out ~

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4 G IEEE802.15.4/ZigBee Specifications
  • Wireless transmission Range up to 100 m
    (ZB-2550-T/ZB-2550-PA/ZB-2551-T/ZB-2551-PA)
  • Wireless Transmission Range up to 700 m
    (ZB-2550-PA/ZB-2551-PA)
  • GUI Configuration Software (Windows Version)
  • DIN-Rail Mountable
Model: ZB-2550-T/ZB-2550-PA/ZB-2551-T/ZB-2551-PA

The ZB-2550 and ZB-2551 series are small-sized wireless ZigBee converters based on the IEEE 802.15.4 standard. The converters allow the deivces which have RS-485/RS-232 interfaces, to transfer and transmit the data to a ZigBee wireless network.

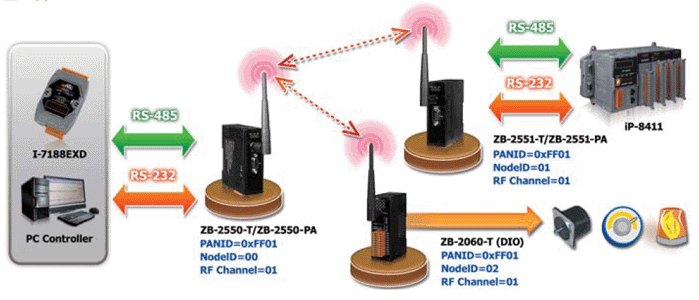

Only one ZB-2550-T series (host) is allowed in a ZigBee network and used to initialize and manage the data transmission routes. The ZB- 2551-T series (slave) ZigBee router is responsible for transmitting/receiving data from its child/parent router or the host. ICP DAS ZigBee products are designed for low data rates. The main benefit of ICP DAS ZigBee products is that they can be used to define a generalpurpose, self-organizing mesh network, which can be highly advantageous for industrial control.

The typical transmission range of the ICP DAS ZigBee ZB-2550-T/ZB-2551-T converter is 100m, and 700m for the ZB-2550-PA/ZB-2551-PA.


Models ZB-2550-T ZB-2550-PA ZB-2551-T ZB-2551-PA
ZigBee Module
RF Channels 16
Receiving Sensitivity -102 dBm
Transmit Power 4 dBm 22 dBm 4 dBm 22 dBm
Network Topology Star, Mesh and Cluster tree
Antenna
(Omni-Directional antenna)
2.4 GHz – 3 dBi 2.4 GHz – 5 dBi 2.4 GHz – 3 dBi 2.4 GHz – 5 dBi
Transmission Range 100 m 700 m 100 m 700 m
Certification CE/FCC, FCC ID No CE/FCC, FCC ID No
General
Module Type Host Slave
Communication Interface
COM 0 D-Sub 9 Female Non-isolated ;
RS-232 (TxD, RxD, GND);
RS-485 (DATA+, DATA-;internal self-tuner ASIC
D-Sub 9 Male Non-isolated;
RS-232 (TxD, RxD, GND);
RS-485 (DATA+, DATA-;internal self-tuner ASIC)
Baud Rate 1200 ~ 115200 bps
LED Indicators
ZigBee Net State Green
ZigBee RxD Yellow
Power Red
Power
Protection Power reverse polarity protection
EMS Protection ESD, Surge, EFT
Required Supply Voltage +10 VDC ~ +30 VDC
Power Consumption 0.5 W 2.0 W (max.) 0.5 W 2.0 W (max.)
Connection 5-Pin 5.08 mm Removable Terminal Block
Mechanical
Casing Plastic
Flammability UL 94V-0 fire-retardant materials
Dimensions (W x L x H) 33 mm x 107 mm x 78 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Relative Humidity 5% ~ 90% RH, Non-condensing

ZB-2550-T CR RS-485/RS-232 to ZigBee Converter (Host) (RoHS)
ZB-2550-PA CR RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
ZB-2551-T CR RS-485/RS-232 to ZigBee Converter (Slave) (RoHS)
ZB-2551-PA CR RS-485/RS-232 to High Power Amplifier ZigBee Converter (Slave) (RoHS)

Power Supply
ZigBee AIO
ZigBee DIO
ZigBee Repeater
ZigBee Converter
ANT-8 1 Km external antenna
ANT-15 5 Km external antenna (Omnidirectional)
ANT-18 9 Km external antenna (Directional)
ANT-21 12 Km external antenna (Directional)
ANT-15YG 5 Km external antenna (Directional)
