ZB-2043-T/ZB-2043-PA Wireless 14-channel Isolated Digital Output Module
~ Phased out ~
ISM 2.4 GHz Operating Frequency
Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
Wireless Transmission Range up to 700 m (PA-Version)
Wireless Transmission Range up to 100 m (T-Version)
GUI Configuration Software (Windows Version)
14 Digital Output Channels for Open Collector
Short Circuit Protection
Surge and ESD Protection
DIN-Rail Mountable
Model: ZB-2043-T
Model: ZB-2043-PA
The ZB-2043-T/ZB-2043-PA offers 14 sink type digital output channels with short circuit protection. All channels feature photo-couple isolation. The ZB-2043-T/ZB-2043-PA includes 14 LED indicators to display the DO channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are the standard. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.
External Power Reversed Protection and Short Circuit Protection
Yes
Current Limited Protection
1.1 A
Intra-module Isolation, Field to Logic
3750 VDC
ESD Protection
+/-4 kV contact for each channel
Models
ZB-2043-T
ZB-2043-PA
Communication Interface
Wireless Standards
ZigBee, IEEE 802.15.4
Transmission Power
4 dBm
22 dBm
2.4 GHz Antenna
3 dBi Omni directional
5 dBi Omni directional
Transmission Range (LoS)
100 m
700 m (Typical)
1 km (Max.)
Certification
CE/FCC, FCC ID
-
Max. Slaves in a ZigBee Network
254
ZB-100R/ZB-100T Support
Yes
Protocols
Supports DCON and Modbus RTU Protocols
Hot Swap
Rotary and DIP switch
LED Indicators
Power
1 LED, red
ZigBee Communication
1 LED, green
Digital Output
14 LEDs, red
Power
Power Consumption
0.88 W Max.
Mechanical
Flammability
Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H)
33 mm x 87 mm x 107 mm
Installation
DIN-Rail
Environment
Operating Temperature
-25 °C ~ +75 °C
Storage Temperature
-30 °C ~ +80 °C
Relative Humidity
10 ~ 90% RH, Non-condensing
ZB-2043-T CR
Wireless 14-channel Isolated Digital Output Module (RoHS)
ZB-2043-PA CR
Wireless 14-channel Isolated Digital Output Module (RoHS) (Long Range)

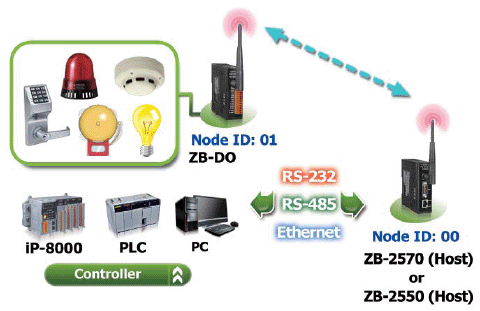

Important Note: ZigBee Data Acquisition modules need a ZigBee host converter to coordinate the data transmission route. Please remember to order a
ZB-2550-T, ZB-2550-PA, ZB-2570-T or ZB-2570-PA ZigBee host converter when you purchase ZigBee Data Acquisition Products.
