ZB-2017C-T/ZB-2017C-PA
Wireless 8-channel Current Input Module with High Common Voltage Protection

~ Phased out ~
  • SM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m (PA-Version)
  • Wireless Transmission Range up to 100 m (T-Version)
  • GUI Configuration Software (Windows Version)
  • 8 Differential Current Input Channels
  • Individual Channel Configuration
  • Open Wire Detection for 4 ~ 20 mA
  • EFT and ESD Protection
  • DIN-Rail Mounting

Model: ZB-2017C-T Model: ZB-2017C-PA

The ZB-2017C-T/ZB-2017C-PA is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (-20 mA ~ +20 mA, 0 ~ +20 mA or +4 ~ +20 mA) . Each analog channel can be configured for an individual range and has a high 200 VDC common voltage protection. The module also supports open wire detection for 4 ~ 20 mA. Users can easily configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ZB-2017C-T ZB-2017C-PA
Communication Interface
Wireless Standards ZigBee, IEEE 802.15.4
Transmission Power 4 dBm 22 dBm
2.4 GHz Antenna 3 dBi Omni directional 3 dBi Omni directional
Transmission Range (LoS) 100 m 700 m (Typical)
1 km (Max.)
Certification CE/FCC, FCC ID -
Max. Slaves in a ZigBee Network 254
ZB-100R/ZB-100T Support Yes
Protocols Supports DCON and Modbus RTU Protocols
Hot Swap Rotary and DIP switch
LED Indicators
Power 1 LED, red
ZigBee Communication 1 LED, green
Power
Power Consumption 1.7 W Max.
Mechanical
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 87 mm x 107 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Relative Humidity 10 ~ 90% RH, Non-condensing

Models ZB-2017C-T ZB-2017C-PA
Analog Input
Input Channels 8 Differential
Input Types -20 mA ~ +20 mA, 0 mA ~ +20 mA or +4 mA ~ +20 mA
Resolution 16-bit
Sampling Rate 16-bit, 10 Samples/Sec. (Total)
Accuracy +/-0.1% of FSR
-3dB Bandwidth 15.7 Hz
Zero Drift +/-20 μV/°C
Span Drift +/-25 ppm/°C
Common Mode Rejection 86 dB
Normal Mode Rejection 100 dB
Input Impedance 125 Ω
Common Voltage +/- 200 VDC
Individual Channel Configuration Yes
Open Wire Detection for 4 ~ 20 mA Yes
Intra-module Isolation, Field-to-Logic 3000 VDC
ESD Protection +/-4 kV contact for each channel

ZB-2017C-T CR Wireless 8-channel Current Input Module with High Common Voltage Protection (RoHS)
ZB-2017C-PA CR Wireless 8-channel Current Input Module with High Common Voltage Protection (RoHS)(Long Range)

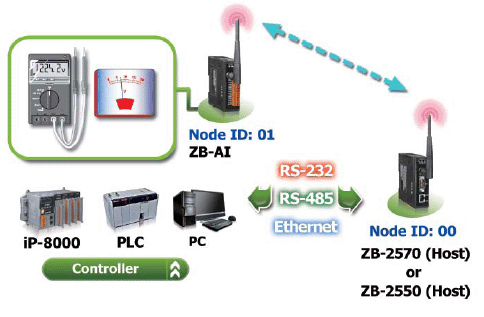

Important Note: ZigBee Data Acquisition modules need a ZigBee host converter to coordinate the data transmission route. Please remember to order a
ZB-2550-T, ZB-2550-PA, ZB-2570-T or ZB-2570-PA ZigBee host converter when you purchase ZigBee Data Acquisition Products.

MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting
ZB-2510-T CR ZigBee Repeater (RoHS)
ZB-2010-PA CR ZigBee Repeater (RoHS)
ZB-2550-T CR RS-485/RS-232 to ZigBee Converter (Host)
ZB-2550-PA CR RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
ZB-2570-T CR Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS)
ZB-2570-PA CR Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
