ZB-2017-T/ZB-2017-PA
Wireless 8-channel Analog Input Module with High Voltage Protection
~ Phased out ~
  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m (PA-Version)
  • Wireless Transmission Range up to 100 m (T-Version)
  • GUI Configuration Software (Windows Version)
  • 8 Differential Analog Input Channels (mV, V)
  • Individual Channel Configuration
  • Overvoltage Protection up to 240 Vrms
  • EFT and ESD Protection
  • DIN-Rail Mounting

Model: ZB-2017-T Model: ZB-2017-PA

The ZB-2017-T/ZB-2017-PA is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V or +/-10 V) . Each analog channel can be configured for an individual input range and has a high 240 Vrms overvoltage protection. Users can easily configure to configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.

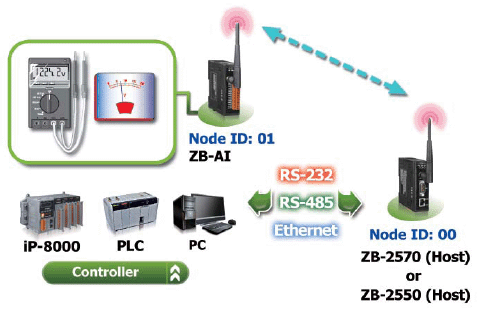

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ZB-2017-T ZB-2017-PA
Analog Input
Input Channels 8 Differential
Input Types +/-10 V, +/-5 V, +/-1V, +/-500 mV, +/-150 mV or -20 mA ~ +20 mA
(Requires Optional External 125 [ Resistor)
Resolution 16-bit
Sampling Rate 16-bit, 10 Samples/Sec. (Total)
Accuracy +/-0.1% of FSR
-3dB Bandwidth 15.7 Hz
Zero Drift +/-20 μV/°C
Span Drift +/-25 ppm/°C
Common Mode Rejection 86 dB
Normal Mode Rejection 100 dB
Input Impedance >2 MΩ
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Intra-module Isolation, Field-to-Logic 3000 VDC
ESD Protection +/-4 kV contact for each channel

Models ZB-2017-T ZB-2017-PA
Communication Interface
Wireless Standards ZigBee, IEEE 802.15.4
Transmission Power 4 dBm 22 dBm
2.4 GHz Antenna 3 dBi Omni directional 5 dBi Omni directional
Transmission Range (LoS) 100 m 700 m (Typical)
1 km (Max.)
Certification CE/FCC, FCC ID -
Max. Slaves in a ZigBee Network 254
ZB-100R/ZB-100T Support Yes
Protocols Supports DCON and Modbus RTU Protocols
Hot Swap Rotary and DIP switch
LED Indicators
Power 1 LED, red
ZigBee Communication 1 LED, green
Power
Power Consumption 1.7 W Max.
Mechanical
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 87 mm x 107 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Relative Humidity 10 ~ 90% RH, Non-condensing

ZB-2017-T CR Wireless 8-channel Analog Input Module with High Voltage Protection (RoHS)
ZB-2017-PA CR Wireless 8-channel Analog Input Module with High Voltage Protection (RoHS) (Long Range)
Important Note: ZigBee Data Acquisition modules need a ZigBee host converter to coordinate the data transmission route. Please remember to order a
ZB-2550-T, ZB-2550-PA, ZB-2570-T or ZB-2570-PA ZigBee host converter when you purchase ZigBee Data Acquisition Products.

MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting
ZB-2510-T CR ZigBee Repeater (RoHS)
ZB-2010-PA CR ZigBee Repeater (RoHS)
ZB-2550-T CR RS-485/RS-232 to ZigBee Converter (Host)
ZB-2550-PA CR RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
ZB-2570-T CR Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS)
ZB-2570-PA CR Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
