ZB-2015-T/ZB-2015-PA
Wireless 6-channel RTD Input Module with 3-wire RTD Lead Resistance Elimination


~ Phased out ~
  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m (PA-Version)
  • Wireless Transmission Range up to 100 m (T-Version)
  • GUI Configuration Software (Windows Version)
  • 3-wire RTD Input with Lead Resistance Elimination
  • Individual Channel Configuration
  • Open Wire Detection
  • Overvoltage Protection
  • DIN-Rail Mounting

Model: ZB-2015-T Model: ZB-2015-PA

The ZB-2015-T/ZB-2015-PA offers 6 wireless input channels, each of which can be connected to different kinds of RTD sensors. It features automatic compensation for 3-wire RTD, with long-distance measurement capabilities so that it can measure accurately regardless of the length of the wires. Also the ZB-2015-T/ZB-2015-PA is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ZB-2015-T ZB-2015-PA
Communication Interface
Wireless Standards ZigBee, IEEE 802.15.4
Transmission Power 4 dBm 22 dBm
2.4 GHz Antenna 3 dBi Omni directional 5 dBi Omni directional
Transmission range (LOS) 100 m 700 m (Typical)
1 km (Max.)
Certification CE/FCC, FCC ID -
Max. Slaves in a ZigBee Network 254
ZB-100R/ZB-100T Support Yes
Protocols Supports DCON and Modbus RTU Protocols
Hot Swap Rotary and DIP switch
LED Indicators
Power 1 LED, red
ZigBee Communication 1 LED, green
Power
Power Consumption 1.5 W Max.
Mechanical
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 87 mm x 107 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Relative Humidity 10 ~ 90% RH, Non-condensing

Models ZB-2015-T ZB-2015-PA
Analog Input
Input Channels 6
Input Type 2/3-wire RTD
RTD Types Pt100, Pt1000, Ni120, Cu100, Cu1000
Resolution 16-bit
Sampling Rate 12 Samples/Sec. (Total)
Accuracy +/-0.05%
Zero Drift +/-0.5 μV/°C
Span Drift +/-20 μV/°C
Common Mode Rejection 150 dB
Normal Mode Rejection 100 dB
Open Wire Detection Yes
Overvoltage Protection 120 VDC/110 VAC
Individual Channel Configuration Yes
3-wire RTD Lead Resistance Elimination Yes
ESD Protection +/-4 kV contact for each channel and +/-8 kV air for random point
Intra-module Isolation, Field to Logic 3000 VDC

ZB-2015-T CR Wireless 6-channel RTD Input Module with 3-wire RTD Lead Resistance Elimination (RoHS)
ZB-2015-PA CR Wireless 6-channel RTD Input Module with 3-wire RTD Lead Resistance Elimination (RoHS) (long range)

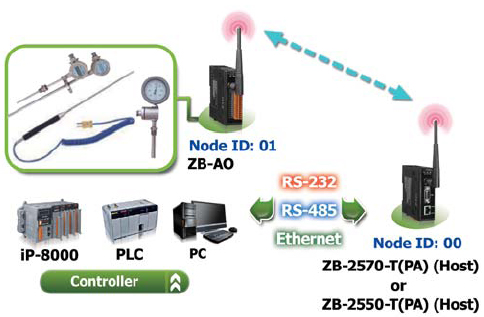

Important Note: ZigBee Data Acquisition modules need a ZigBee host converter to coordinate the data transmission route. Please remember to order a
ZB-2550-T, ZB-2550-PA, ZB-2570-T or ZB-2570-PA ZigBee host converter when you purchase ZigBee Data Acquisition Products.

MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting
ZB-2510-T CR ZigBee Repeater (RoHS)
ZB-2010-PA CR ZigBee Repeater (RoHS)
ZB-2550-T CR RS-485/RS-232 to ZigBee Converter (Host)
ZB-2550-PA CR RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
ZB-2570-T CR Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS)
ZB-2570-PA CR Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)
