VPD-142-H/VPD-142N-H/VPD-143-H/VPD-143N-H

~ NEW ~	~ NEW ~

Model: VPD-142-H	Model: VPD-142N-H
~ NEW ~	~ NEW ~

Model: VPD-143-H	Model: VPD-143N-H


Excellent C/P ratio (cost/performance) High-resolution color touch screen RTC (Real Time Clock) Communication port: Serial, Ethernet Rubber Keypad (VPD-142-H/VPD-143-H) GUI design Free HMIWorks development tool Supports the C programming language and Lader Designer Supports the Modbus TCP/RTU communication protocol Supports user-defined third party protocol (C language) ESD Protection: 4 kV Front Panel: IP65 Waterproof I/O Expansion Boards (XV-Boards)

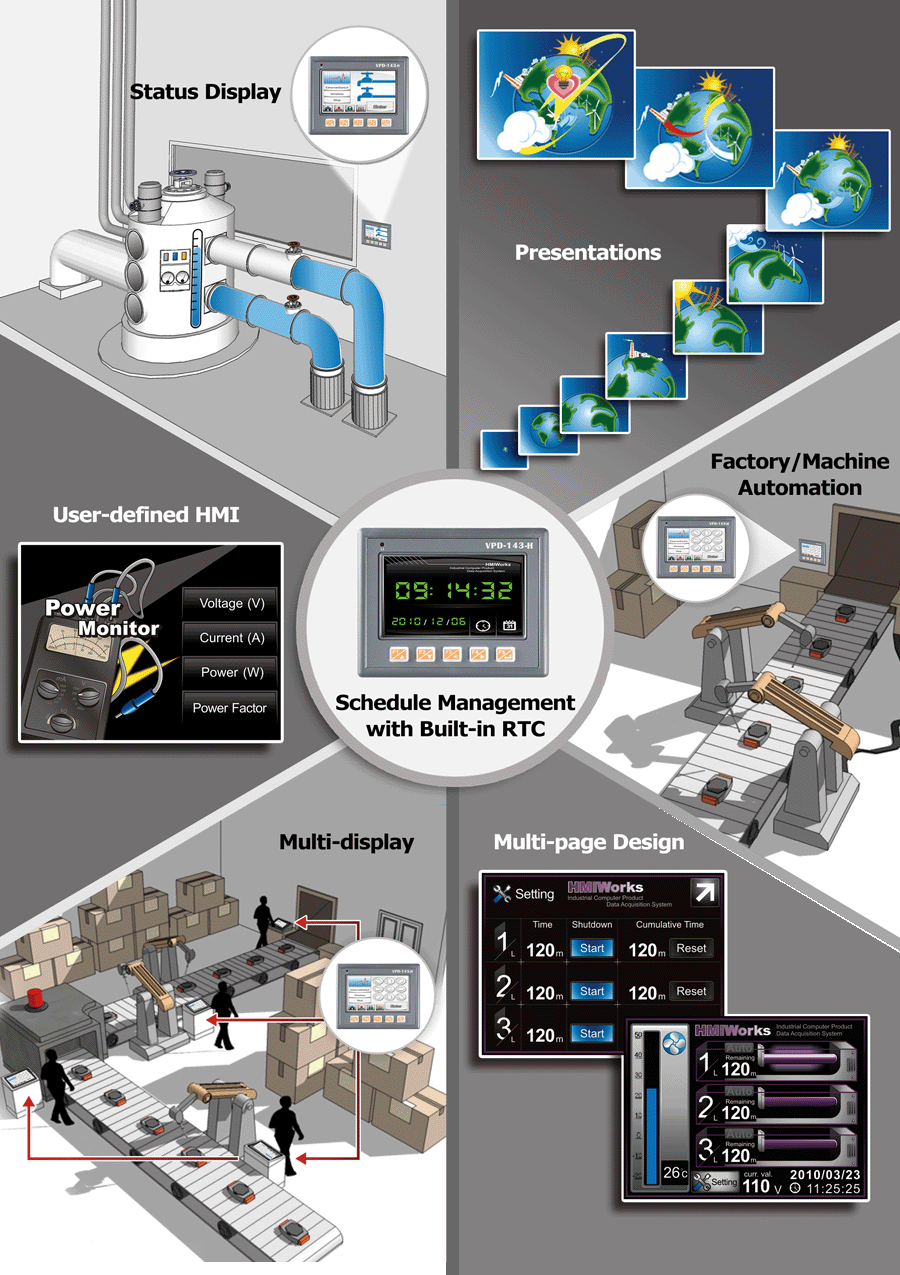

The TouchPAD VPD 4.3 inch H Series is a series of industrial touch HMI devices that features, 4.3" high resolution color touch screen LCD. With touchscreen capability, it is easy to deploy into all kinds of automation systems, and make them more intuitive and efficient. Either setup new system installations or complete system retrofits, VPD series stands out for its wide variety of communication methods. Its built-in communication ports include RS-232/RS-485, and Ethernet (VPD-143-H/143N-H), enable integration into the system allowing users to control, monitor I/O at the remote sides and update firmware directly from the central computer. Besides, the built-in non-volatile storage makes VPD series more reliable for rugged environments.

HMIWorks, the free development software for VPD series, provides an easy-to-use environment, and powerful and intuitive programming with graphic capabilities to let users create appealing graphical interface screens in minutes. For PLC users, HMIWorks provides Ladder Designer and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program when using Ladder Designer. With all the features provided, VPD series touch HMI devices must be the most cost effective HMI device ever been in the market.

Models	VPD-142-H	VPD-142N-H	VPD-143-H	VPD-143N-H
CPU Module
CPU	32-bit RISC CPU
Memory Expansion	16 MB SDRAM/16 MB Flash
Real Time Clock (RTC)	Yes
Buzzer	Yes
Rotary Switch (0~9)	Yes
Communication Interface
COM1	One set of RS-232 (3-pin) / RS-485 (including Self-Tuner)
COM2	One set of RS-232 (3-pin) / RS-485 (including Self-Tuner)
USB 1.1 Client	Firmware updates only
Ethernet	-		RJ-45 x 1, 10/100 Base-TX
I/O Expansion
I/O Expansion Bus	Yes, One of XVboards
MMI (Main Machine Interface)
LCD	4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life	20,000 hours
Brightness	400 cd/m2
LED Indicator	Yes	-	Yes	-
Touch Panel	Yes
Reset Button	Yes
Rubber Keypad	5 keys (Programmable)	-	5 keys (Programmable)	-
Electrical
Power Input Range	+12 ~ 48 VDC
Powered from PoE	-		IEEE 802.3af, Class1 (48 V)
Power Consumption	2.5 W
Mechanical
Dimensions (W x L x H)	131 mm x 105 mm x 54 mm
Ingress Protection	Front Panel: IP65

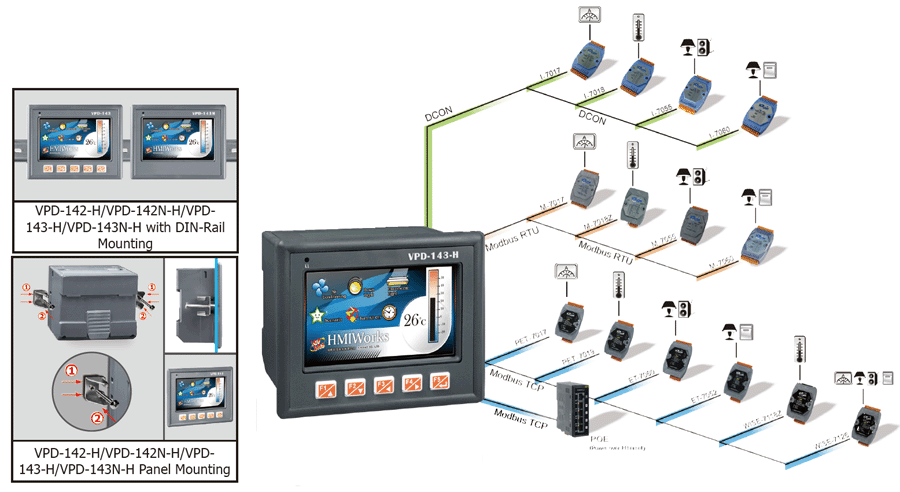

Installation	DIN-Rail Mounting and Panel Mounting
Environmental
Operating Temperature	-20 ~ +50°C
Storage Temperature	-30 ~ +80 °C
Ambient Relative Humidity	10 ~ 90% RH, non-condensing

VPD-142-H CR	4.3” Touch HMI device with RS-232/RS-485, USB, RTC, Rubber Keypad, support XV-board (RoHS)
VPD-142N-H CR	4.3” Touch HMI device with RS-232/RS-485, USB, RTC,support XV-board (RoHS)
VPD-143-H CR	4.3” Touch HMI device with Ethernet, RS-232/RS-485, USB, RTC, Rubber Keypad, support XV-board (RoHS)
VPD-143N-H CR	4.3” Touch HMI device with Ethernet, RS-232/RS-485, USB, RTC, support XV-board (RoHS)

CA-USB10	USB to 5P Mini-USB, 28AWG, 1.5 m
MDR-60-24 CR	24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F CR	24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
