TPD-280-M1/TPD-283-M1/TPD-283U-M1/TPD-280-M2/TPD-283-M2/
TPD-283U-M2/TPD-280-M3/TPD-283-M3/TPD-283U-M3


~ NEW ~
M1 Models M2 Models M3 Models

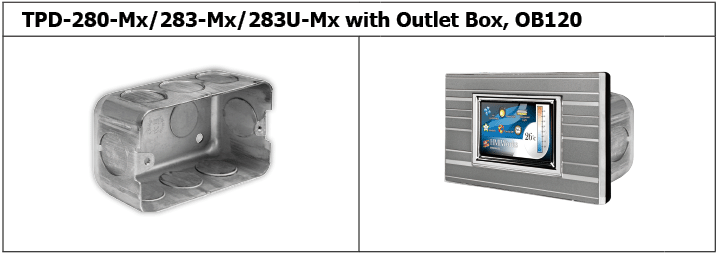

TPD 2.8 inch Mx series is a series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch Mx series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. Moreover, we provide redundant solutions in our PoE version, TPD-283-Mx/283U-Mx of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • RS-485 (including Self-Tuner)
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Supports C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus TCP/RTU protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 70°C




Models
TPD-280-Mx
TPD-283-Mx
TPD-283U-Mx
CPU Module
CPU
32-bit RISC CPU
Memory Expansion
-
16 MB SDRAM/16 MB Flash
Real Time Clock (RTC)
-
Yes
Buzzer
Yes
Rotary Switch (0~9)
Yes
Communication Interface
Serial Port COM1
RS-485 (including Self-Tuner)
-
RS-485 (including Self-Tuner)
COM2
-
Ethernet
-
RJ-45 x 1, 10/100 Base-TX
USB Client 1.1
-
-
Firmware updates only
MMI (Main Machine Interface)
LCD
2.8” TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life
20,000 hours
Brightness
160 cd/m2
Touch Panel
Resistive Touch
Reset Button
Yes
Electrical
Powered from Terminal Block
+12 ~ 48 VDC
-
+12 ~ 48 VDC
Powered from PoE
-
IEEE 802.3af, Class1 (48 V)
Power Consumption
1.5 W
Mechanical
Dimensions (W x L x H)
127 mm x 92 mm x 31 mm
127 mm x 92 mm x 30 mm
127 mm x 92 mm x 31 mm
Installation
Wall Mounting
Ingress Protection
Front Panel: IP40
Environmental
Operating Temperature
-20 ~ +70°C
Storage Temperature
-30 ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing

TPD-280-M1 CR 2.8” Touch HMI device with RS-485 (RoHS)
TPD-280-M2 CR 2.8” Touch HMI device with RS-485 (RoHS)
TPD-280-M3 CR 2.8” Touch HMI device with RS-485 (RoHS)
TPD-283-M1 CR 2.8” Touch HMI device with Ethernet, PoE (RoHS)
TPD-283-M2 CR 2.8” Touch HMI device with Ethernet, PoE (RoHS)
TPD-283-M3 CR 2.8” Touch HMI device with Ethernet, PoE (RoHS)
TPD-283U-M1 CR 2.8” Touch HMI device with RS-485 (including Self-Tuner), RTC, Ethernet, PoE (RoHS)
TPD-283U-M2 CR 2.8” Touch HMI device with RS-485 (including Self-Tuner), RTC, Ethernet, PoE (RoHS)
TPD-283U-M3 CR 2.8” Touch HMI device with RS-485 (including Self-Tuner), RTC, Ethernet, PoE (RoHS)

1C016 2.4 mm Screw driver
NS-208PSE CR Unmanaged Industrial PoE (Power over Ethernet) Ethernet Switch (RoHS)
MDR-60-24 CR 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
