TPD-280/TPD-280U/TPD-283/TPD-283U

~ Phased out ~ ~ Phased out ~
Model: TPD-280 Model: TPD-280U
~ Phased out ~ ~ Phased out ~
Model: TPD-283 Model: TPD-283U

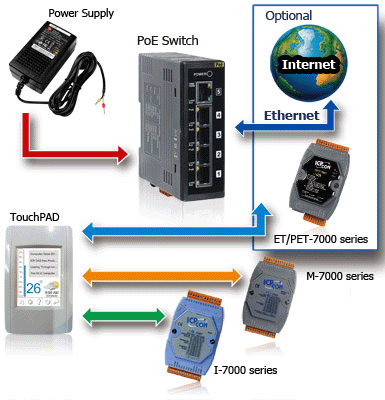

TPD-28x is a series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wallmount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD series devices when using Ladder Designer. Moreover, we provide redundant solutions in our PoE version, TPD-283 of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • RS-485 (including Self-Tuner)
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Suppots C language and Ladder Designer
  • Supports user-defined third party protocol (C language)
  • Modbus TCP/RTU protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 70°C


Models TPD-280 TPD-280U TPD-283 TPD-283U
CPU Module
CPU 32-bit RISC CPU
Memory Expansion - 16 MB SDRAM / 8 MB Flash - 16 MB SDRAM / 8 MB Flash
Real Time Clock (RTC) - Yes - Yes
Buzzer Yes
Rotary Switch (0~9) Yes
Communication Interface
Ethernet - RJ-45 x 1, 10/100 Base-TX
Serial Port RS-485 (including Self-Tuner) - RS-485 (including Self-Tuner)
USB 1.1 Client   Firmware updates only - Firmware updates only
MMI (Main Machine Interface)
LCD 2.8 TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 160 cd/m2
Touch Panel Yes
Reset Button Yes
Electrical
Powered from Terminal Block +10 ~ 30 VDC - +10 ~ 30 VDC
Powered from PoE - IEEE 802.3af, Class1 (48 V) IEEE 802.3af, Class1 (48 V)
Power Consumption 1.2 W
Mechanical
Dimensions (W x L x H) 119 mm x 76 mm x 33 mm 119 mm x 76 mm x 32 mm 119 mm x 76 mm x 33 mm
Installation Wall Mounting
Ingress Protection Front Panel: IP40
Environmental
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
Ambient Relative Humidity 10 ~ 90% RH, non-condensing
* The external (expanded) 8 MB flash is used only for firmware storage.
Note: TPD-283 does not support Modbus TCP Slave function, uses TPD-283U instead.

TPD-280 CR 2.8” Touch HMI device with RS-485 (RoHS)
TPD-280U CR 2.8” Touch HMI device with RS-485, USB download, RTC (RoHS)
TPD-283 CR 2.8” Touch HMI device with Ethernet, PoE (RoHS)
TPD-283U CR 2.8” Touch HMI device with RS-485, USB download, RTC, Ethernet, PoE (RoHS)

4PCD-001 TouchPAD Accessory Package
  • Including CA-USB10 (USB to 5P Mini-USB, 28AWG, 1.5 m), 1C016 (2.4 mm Screw driver), a software CD
  • supported models: TPD-28xU series, TPD-43x series, TPD-43xF series, VPD-13x series.
CA-USB10 USB to 5P Mini-USB, 28AWG, 1.5 m
1C016 2.4 mm Screw driver
NS-208PSE CR Unmanaged Industrial PoE (Power over Ethernet) Ethernet Switch (RoHS)
MDR-60-24 CR 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F CR 24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
EWB-T28 External Wall Box for TPD 2.8 inch series

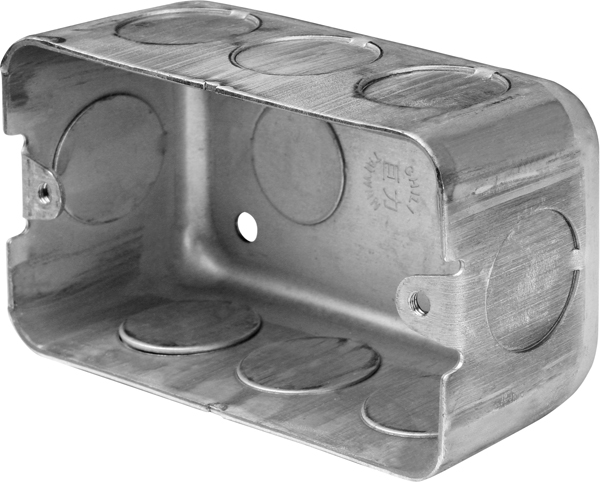

OB120 Outlet Box for TPD 2.8 inch series and TPD-430/TPD-433 Devices
