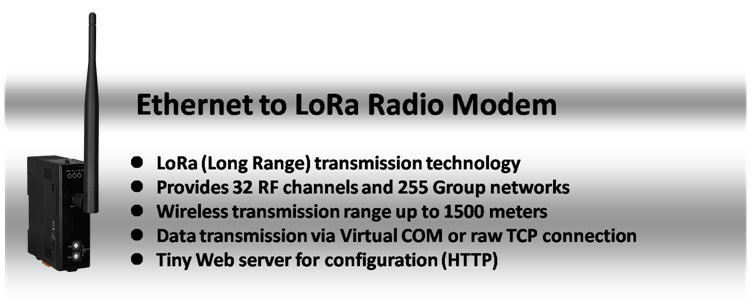

New Product Release: LRA-900-E
Ethernet to LoRa Radio Modem (Asia only)
Mar. 30, 2020 -
- Introduction:The LRA-900-E is a Ethernet to radio device designed for remote communication operating in a transparent way and exploiting the physical layer of LoRa (Long Range) transmission technology. By using the VxComm Driver/Utility, the built-in RF port of the LRA-900-E can be virtualized to a standard PC COM Port in Windows. Therefore, users can transparently access RF datas over the Internet/Ethernet via COM Port program.The LRA-900-E provides a maximum line of sight (LOS) transmission distance of 1000 meters (1 km) at an RF bit rate less than 1000 bps. In order to overcome the interference that may be encountered in harsh environments, the LRA-900-E allows the RF transmission bit rate to be configured to a minimum of 250 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful to avoid interference encountered when two LRA-900-E networks are adjacent. The RF channels and the Group IDs can be configured in order to distinguish and control the different LRA-900-E networks.
- Features:
- LoRa (Long Range) transmission technology
- 32 RF channels (Frequency band : 864 to 871.5MHz, 915to 922.5MHz)
- 7 RF baud rates (10,000 to 250 bps)
- Wireless line of sight (LOS) transmission range of up to 1500 meters at an RF baud rate of 1000 bps
- Data transmission via Virtual COM or raw TCP connection
- VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
- Max. connections: 1 socket is suggested
- Supports TCP server-mode operation
- Supports UDP responder for device discovery (UDP Search)
- Static IP or DHCP network configuration
- Easy firmware update via the Ethernet (BOOTP, TFTP)
- Tiny Web server for configuration (HTTP)
- Contains a 32-bit MCU that efficiently handles network traffic
- 10/100 Base-TX Ethernet, RJ-45 x1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Applications:
-
For more information, please refer to
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/lra-900-e.html
Ordering Information:LRA-900 CR RS-232/RS-485 Radio Modem (RoHS) LRA-900-E CR Ethernet to LoRa Radio Modem (RoHS)
