LRA-900-E
Ethernet to LoRa Radio Modem


~ Available soon ~
Model: LRA-900-E

  • LoRa (Long Range) transmission technology
  • 32 RF channels (Frequency band : 864~ 871.5MHz, 915~ 922.5MHz)
  • 7 RF baud rates (10000 ~ 250 bps)
  • Wireless line of sight (LOS) transmission range of up to 1500 meters at an RF baud rate of 1000 bps

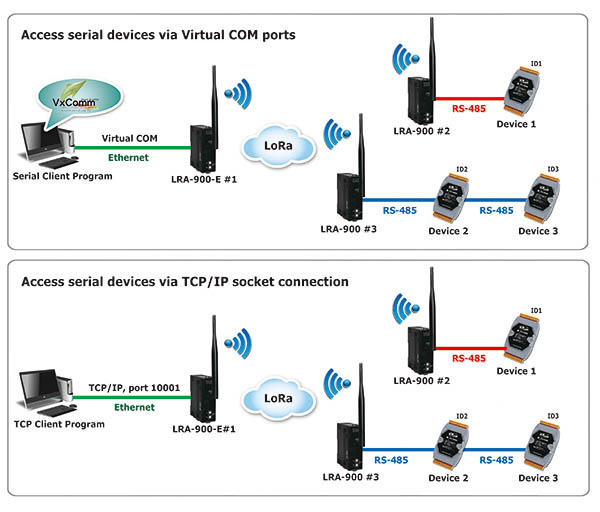

  • Data transmission via Virtual COM or raw TCP connection
  • Tiny Web server for configuration (HTTP)
  • Supports TCP server-mode operation
  • Supports UDP responder for device discovery (UDP Search)

The LRA-900-E is a Ethernet to radio device designed for remote communication operating in a transparent way and exploiting the physical layer of LoRa (Long Range) transmission technology. By using the VxComm Driver/Utility, the built-in RF port of the LRA-900-E can be virtualized to a standard PC COM Port in Windows. Therefore, users can transparently access RF datas over the Internet/Ethernet via COM Port program.
The LRA-900-E provides a maximum line of sight (LOS) transmission distance of 1500 meters at an RF bit rate less than 1000 bps. In order to overcome the interference that may be encountered in harsh environments, the LRA-900-E allows the RF transmission bit rate to be configured to a minimum of 250 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful to avoid interference encountered when two LRA-900-E networks are adjacent. The RF channels and the Group IDs can be configured in order to distinguish and control the different LRA-900-E networks.


RF Interface
Radio Frequency 864~ 871.5 MHz, 915~ 922.5 MHz (channel: 32, recommend using 868 +/- 4 MHz)
Baud Rate 10,000 ~ 250 bps
Transmission Power 15 dBm (Max.)
Antenna 2 dBi Omnidirectional Antenna
Transmission Distance up to 1500 m (with 1000 baud, in free field conditions)
Group ID 0~255
Protocols Transparent transmit
Configuration Web Server
Ethernet Interface
Ethernet 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
LED Indicators
Red/Green/Yellow Power/RF TxD/RF RxD Status
EMS Protection
ESD +/- 4 kV Contact
EFT +/- 1 kV
Surge +/- 1 kV
Power
Power Input +10 VDC ~ +30 VDC
Power Consumption 1.5 W (Max.)
Mechanical
Dimensions (W x L x H) 110 mm x 83 mm x 33 mm (not include antenna)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Relative Humidity 10 ~ 90% RH, Non-condensing
*Note: RF Port = TCP Port 10001
LRA-900-E CR Ethernet to LoRa Radio Modem (RoHS)
*Asia Only.

3S001-1 RG58A/U 1 Meter Long RP-SMA male to RP-SMA Female Cable
