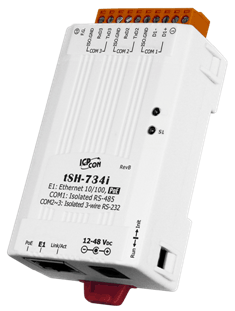

New Product Release: tSH-734i
Tiny Serial Port Sharer with PoE, 1 Isolated RS-232 Port and 1 Isolated RS-485 Port
Jul. 30, 2018
-
- Introduction:
Following the success of the original tGW-700/tDS-700 modules, ICP DAS has continued to develop new functions for these products in order to provide increased support for a greater number of applications. The tSH-734i module is a serial port sharer that provides a number of functions, including "Baud Rate Conversion", "Modbus RTU/ASCII Conversion" and "Two Masters Share One Slave". The built-in web server provides easy configuration interface, and no console commands are required.
The tSH-734i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protects the module and equipment from the sudden and momentary electric current.
Two Masters Share One Slave: This function allows two master devices connected to different serial ports to share slave devices. Modbus mode can be used to convert the Modbus RTU/ASCII protocols, while raw data mode can be used for DCON or other query-response protocols. Different baud rates and data formats can also be used on the different serial ports. The built-in cache function reduces the loading of serial communication on the slave port by removing duplicated queries when the two master devices are requesting the same information.
● Two Masters Share Slave Devices with Protocols and Baud Rates Conversion
-

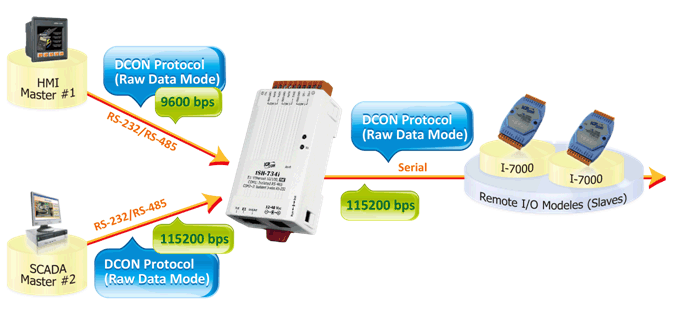

- ● Two Masters Share Slave Devices in Raw Data Mode with Baud Rates Conversion
-
-
Features:
