tSH-700 Series
Tiny Serial Port Converter/Sharer |
|
| |
| |
 |
| Model: tSH-700 Series |
|
|
 |
- Supports Baud Rate conversion application
- Supports Modbus RTU/ASCII protocol conversion
- Supports two masters sharing one slave port for tSH-73x Series only
- Raw data mode for most query-response protocols
- Built-in web server for easy configuration (HTTP)
- Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
- Allows automatic RS-485 direction control
- Tiny form-factor and low power consumption
|
|
|
| |
 |
Following the success of the original tGW-700/tDS-700 modules, ICP DAS has continued to develop new functions for these products in order to provide increased support for a greater number of applications. The tSH-700 module is a serial port sharer that provides a number of functions, including "Baud Rate Conversion", "Modbus RTU/ASCII Conversion" and "Two Masters Share One Slave". The built-in web server provides easy configuration interface, and no console commands are required.

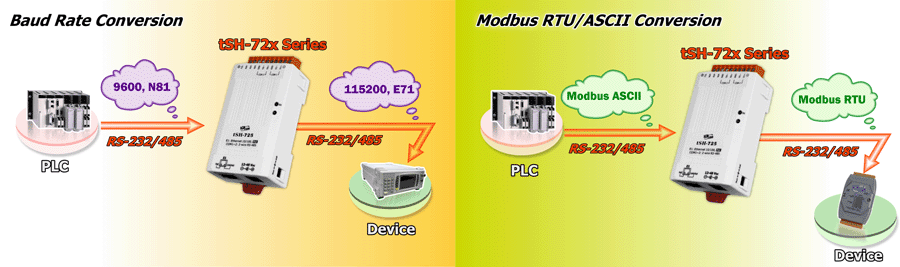

- Baud Rate Conversion: This function allows a single master device to communicate with slave devices using different baud rates and data formats. Most query-response protocols (half-duplex), e.g. DCON, are supported in the raw data mode. Full-duplex communication should also work when the data size is smaller than the built-in 512 bytes buffer on each serial port.
- Modbus RTU/ASCII Conversion: This function allows a single Modbus RTU/ASCII master device to communicate with Modbus RTU/ASCII slave devices using different protocols, baud rates and data formats.
|
 |

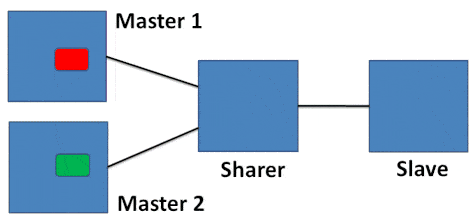

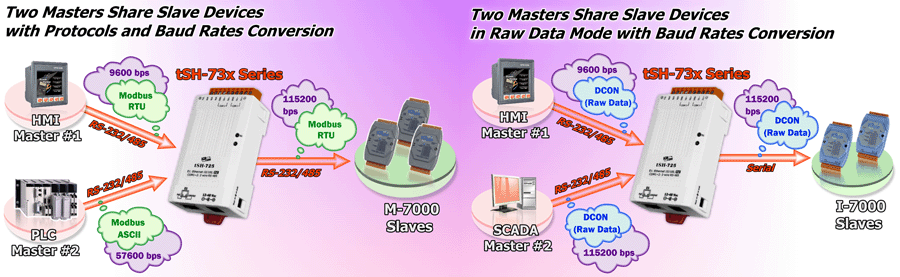

- Two Masters Share One Slave: This function allows two master devices connected to different serial ports to share slave devices. Modbus mode can be used to convert the Modbus RTU/ASCII protocols, while raw data mode can be used for DCON or other query-response protocols. Different baud rates and data formats can also be used on the different serial ports. The built-in cache function reduces the loading of serial communication on the slave port by removing duplicated queries when the two master devices are requesting the same information.
|
|
Note: It's recommended to have large timeout value and scan interval settings on the two masters, since the slave port is now having double loadings. |
| |
 |
| |
 |
- Factory, Building and Home Automation

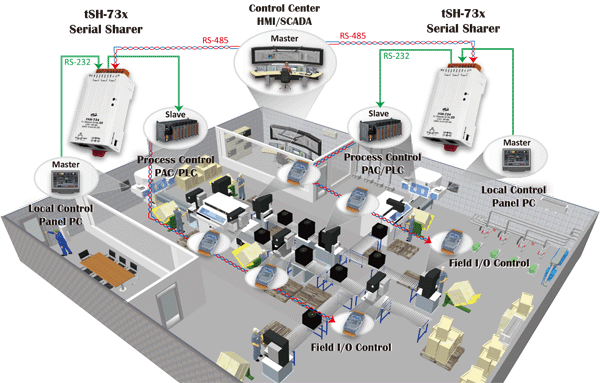

- Accessing a Process Controller from Local Panel and Control Center
|
 |
| |

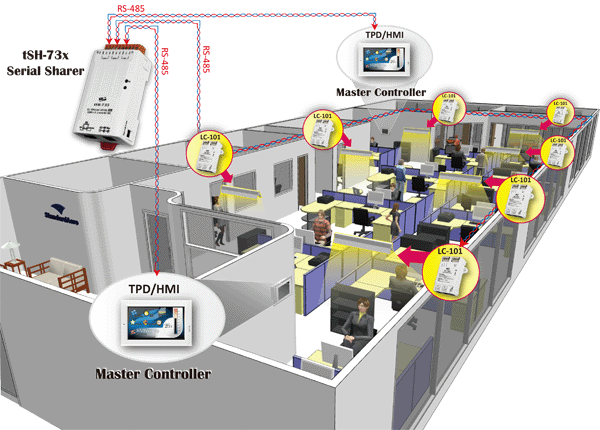

- Control Office Lightings from Two HMI Devices (Masters) in Different Places
|
 |
| |
 |
| Models |
tSH-722/tSH-722i |
tSH-732/tSH-732i |
tSH-725/tSH-725i |
tSH-735/tSH-735i |
tSH-724/tSH-724i |
tSH-734/tSH-734i |
| System |
| CPU |
32-bit ARM |
| Communication Interface |
| Ethernet |
10/100 Base-TX, 8-pin RJ-45 x 1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
PoE (IEEE 802.3af, Class 1) |
| COM1 |
3-wire RS-232 |
3-wire RS-232 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
| COM2 |
3-wire RS-232 |
3-wire RS-232 |
2-wire RS-485 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
| COM3 |
– |
3-wire RS-232 |
– |
2-wire RS-485 |
– |
3-wire RS-232 |
| Self-Tuner |
– |
Yes, automatic RS-485 direction control |
| RS-485 |
Bias Resistor |
– |
Yes, 1 KΩ |
| Node |
– |
254 (max.) |
| UART |
16c550 or compatible |
| Power Isolation |
1000 VDC for tSH-722i / 732i only |
| Signal Isolation |
3000 VDC for tSH-725i / 735i / 724i / 734i only |
| ESD Protection |
+/-4 kV |
| COM Port Format |
| Baud Rate |
115200 bps Max. |
| Data Bit |
5, 6, 7, 8 |
| Parity |
None, Odd, Even, Mark, Space |
| Stop Bit |
1, 2 |
| Power |
| Power Input |
PoE |
IEEE 802.3af, Class 1 |
| DC Jack |
+12 ~ 48 VDC |
| Power Consumption |
0.07 A @ 24 VDC |
| Mechanism |
| Connector |
10-Pin Removable Terminal Block x 1 |
| Mounting |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
|
| |
 |
| tSH-700 Series (Tiny Serial Port Converter/Sharer with PoE and DC jack) : Includes one CA-002 cable. |
| Model (Non-Isolated) |
Model (Isolated) |
RS-232 |
RS-485 |
Application |
COM1 |
COM2 |
COM3 |
| tSH -722 CR |
tSH -722i CR |
2 |
- |
Converter |
3-wire RS-232 |
3-wire RS-232 |
- |
| tSH -725 CR |
tSH -725i CR |
- |
2 |
2-wire RS-485 |
2-wire RS-485 |
- |
| tSH -724 CR |
tSH -724i CR |
1 |
1 |
2-wire RS-485 |
3-wire RS-232 |
- |
| tSH -732 CR |
tSH -732i CR |
3 |
- |
Sharer |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
| tSH -735 CR |
tSH -735i CR |
- |
3 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
| tSH -734 CR |
tSH -734i CR |
2 |
1 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
|
| |
 |
| Model (Non-Isolated) |
| tSH-722 CR |
Tiny Serial Port Converter with PoE and 2 RS-232 Ports (RoHS) |
| tSH-725 CR |
Tiny Serial Port Converter with PoE and 2 RS-485 Ports (RoHS) |
| tSH-724 CR |
Tiny Serial Port Converter with PoE and 1 RS-232 and 1 485 Ports (RoHS) |
| tSH-732 CR |
Tiny Serial Port Sharer with PoE and 3 RS-232 Ports (RoHS) |
| tSH-735 CR |
Tiny Serial Port Sharer with PoE and 3 RS-485 Ports (RoHS) |
| tSH-734 CR |
Tiny Serial Port Sharer with PoE and 2 RS-232 and 1 485 Ports (RoHS) |
| Includes one CA-002 cable. |
| Model (Isolated) |
| tSH-722i CR ~ NEW ~ |
Tiny Serial Port Converter with PoE, Power Isolation and 2 RS-232 Ports (RoHS) |
| tSH-725i CR ~ NEW ~ |
Tiny Serial Port Converter with PoE and 2 Isolated RS-485 Ports (RoHS) |
| tSH-724i CR ~ NEW ~ |
Tiny Serial Port Converter with PoE and 1 Isolated RS-232 and 1 Isolated 485 Ports (RoHS) |
| tSH-732i CR ~ NEW ~ |
Tiny Serial Port Sharer with PoE, Power Isolation and 3 RS-232 Ports (RoHS) |
| tSH-735i CR ~ NEW ~ |
Tiny Serial Port Sharer with PoE and 3 Isolated RS-485 Ports (RoHS) |
| tSH-734i CR ~ NEW ~ |
Tiny Serial Port Sharer with PoE and 2 Isolated RS-232 and 1 Isolated 485 Ports (RoHS) |
| Includes one CA-002 cable. |
|
| |
 |
| CA-002 |
DC connector to 2-wire power cable, 0.3 M |
| DN-09-2 |
I/O Connector Block with DIN-Rail Mounting and two 9-pin Male Header
Includes : CA-0915 x 2 (9-pin Male-Female D-sub Cable 1.5m) |
| DN-09-2F |
I/O Connector Block with DIN-Rail Mounting and two 9-pin Male Header
Includes : CA-0910F x 2 (9-pin Female-Female D-sub Cable 1.0m) |
| NS-205A CR |
Unmanaged 5-port Industrial Ethernet Switch with Power Input +12 VDC ~ +56 VDC (RoHS) |
| NS-205PSE CR |
Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS) |
| FRA05-S12-SU |
12 V/0.58 A (max) Power Supply. |
|
| |
 |
|
| |
|
